SAE J2334 Cyclic Corrosion Chamber for Automotive

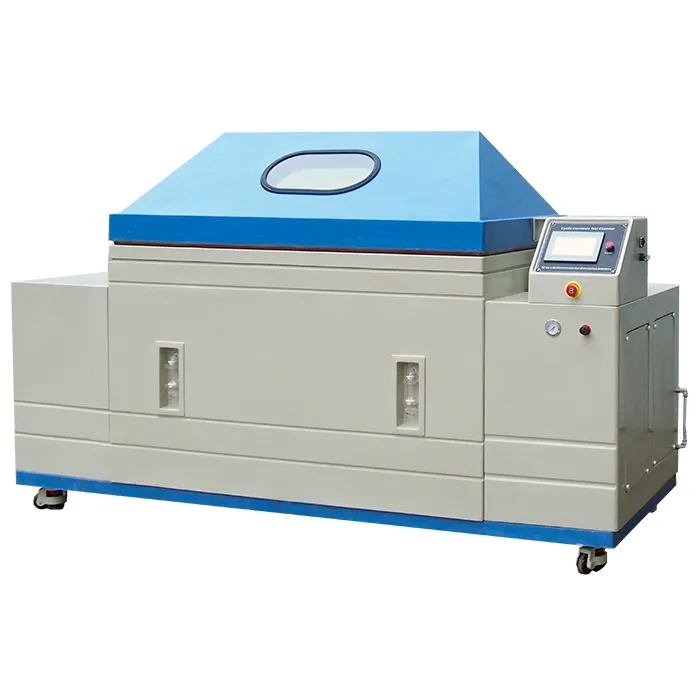

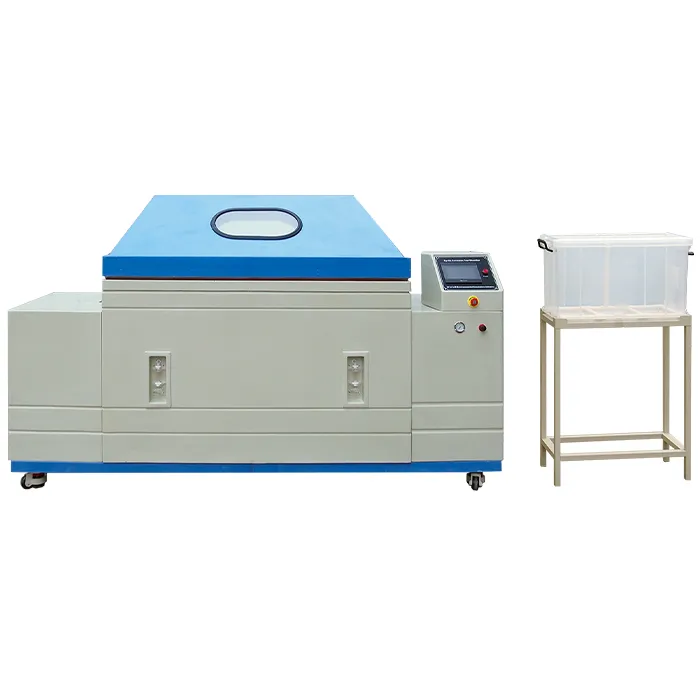

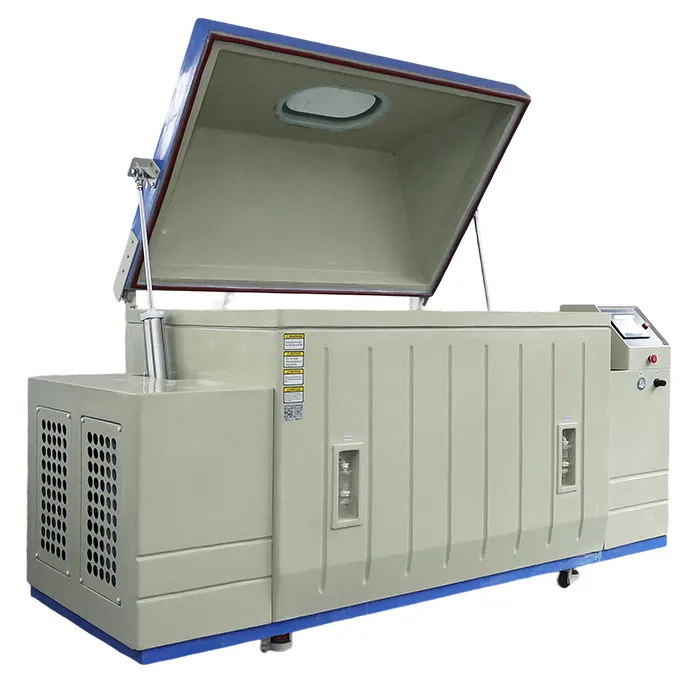

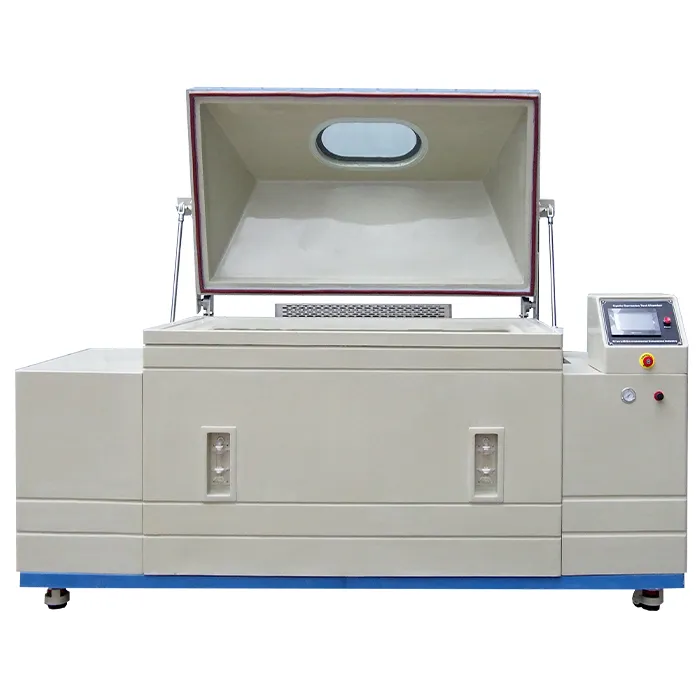

Name: SAE J2334 Cyclic Corrosion Chamber for Automotive
Brand: Xi'an LIB Environmental Simulation Industry

High-precision simulation of real road salt spray environment. Specifically designed for corrosion assessment of automotive vehicles and components.

The SAE J2334 Cyclic Corrosion Chamber is an advanced automotive corrosion testing system designed to evaluate the durability of materials, coatings, and components under realistic road-related corrosive environments, including de-icing salts, industrial atmospheres, and coastal exposure conditions.

As one of the most widely recognized standards in automotive corrosion validation, SAE J2334 provides a significantly more realistic simulation compared to traditional Neutral Salt Spray (NSS) testing by incorporating cyclic exposure phases such as wetting, salt deposition, drying, and humidity transitions.

This system is engineered with closed-loop environmental control to precisely reproduce the SAE J2334 corrosion profile, effectively eliminating the weak correlation between conventional salt spray tests and real-world vehicle corrosion failures.

It is an essential qualification tool for global automotive OEMs and Tier 1 suppliers.

SAE J2334 Cyclic Corrosion Chamber Engineering System for Automotive Corrosion Simulation

1. High-Rate Environmental Transition System

SAE J2334 requires rapid and repeatable environmental changes within a defined cycle.

The system integrates:

Independent forced-air drying module
High-response steam humidification system

Enabling:

Rapid transition from 100% RH to 50% RH within approximately 30 minutes
Stable cyclic repetition without drift
Accurate reproduction of SAE J2334 environmental curves

This ensures full compliance with standardized automotive corrosion profiles.

2. Industrial Anti-Corrosion Structural Design

Inner chamber material: 10mm high-grade corrosion-resistant PP panels (CNC precision processed with automated welding)
High thermal stability for long-term cyclic operation up to elevated temperatures
Dual sealing system: silicone pressure sealing + water sealing barrier
Full isolation design preventing salt aerosol leakage into laboratory environment

This structural design ensures both operational safety and long-term durability under continuous corrosion cycling.

3. Intelligent Control & Data Compliance System

The system includes a fully programmable SAE J2334 test profile with advanced data management functions.

Key capabilities:

One-click SAE J2334 standard cycle execution
Multi-segment programmable test editing
Power failure recovery with automatic resume
Multi-level user access control
USB and Ethernet data export
Automatic generation of test reports

The output data format is suitable for automotive OEM audit requirements and third-party laboratory traceability systems.

SAE J2334 Cyclic Corrosion Chamber for Automotive 24-Hour Test Cycle

Standard Cycle Structure

Wet Phase:
50±2°C, 100% RH, duration: 6 hours

Salt Deposition Phase:
Controlled salt application simulating road de-icing exposure, ~15 minutes

Drying Phase:
60±2°C, 50±5% RH, duration: 17 hours 45 minutes

The system also supports customized OEM-specific corrosion cycles, including protocols from Ford, GM, Volvo, and other automotive manufacturers.

Technical Specifications of SAE J2334 Cyclic Corrosion Chamber

Model	SC-010	SC-016	SC-020
Internal dimensions (mm)	13001000600	1600900720	20001000800
Overall dimensions (mm)	200013001600	230013001700	270013001900
Interior Volume (L)	780	1280	1800
Temperature Range	+10 ℃ ～ +90 ℃
Humidity Range	30% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Cooling system	Mechanical compression refrigeration system
Water supply system	Water purification system
Air Preheating	Saturated air barrel (31Liter)
Spraying System	Atomizer tower and Spray nozzles
Salt Fog Collected	Fog collector and fog measure cylinder
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	8 round bars

Automotive Application Areas

Chassis & Structural Components

Control arms
Suspension systems
Fastener assemblies

Body & Exterior Components

Galvanized steel panels
Aluminum body structures
Edge corrosion evaluation (cut-edge corrosion behavior)

EV & Powertrain Systems

Battery enclosure housings
Motor controller casings
Thermal management structures

Why Choose LIB Industry

LIB industry specializes in environmental reliability testing systems with extensive engineering experience supporting automotive, aerospace, and electronics industries.

We provide not only equipment, but complete engineering-level testing solutions.

Our core strengths include:

Over 17 years of environmental testing engineering experience
Standardized and fully customized automotive corrosion testing solutions
Full lifecycle technical support covering installation, commissioning, maintenance, and system upgrades
Global on-site installation and operator training services
Fast engineering response for customized chamber structures and OEM-specific testing requirements

From standard SAE J2334 validation to complex multi-stage corrosion simulation programs, LIB industry delivers reliable and repeatable testing platforms for global automotive supply chains.

Request a Customized SAE J2334 Corrosion Testing Solution

Whether you are validating automotive coatings, qualifying structural components, or performing OEM supply chain certification, LIB industry can provide a tailored SAE J2334 cyclic corrosion testing solution based on your test standards and specimen requirements.
