In today’s demanding manufacturing environment, sudden temperature fluctuations can critically affect electronics, automotive modules, aerospace components, and industrial devices. To ensure product reliability, LIB industry thermal shock chambers—including both two-zone and three-zone high and low temperature impact test chambers—provide precise, rapid temperature cycling from -75°C to +220°C, with switching times under 3–6 seconds and temperature stability within ±2°C.
Widely used across industries, our chambers comply with international standards such as IEC 60068-2-14 (environmental testing for rapid temperature changes), MIL-STD-810 (military thermal shock), JESD22 (semiconductor reliability), and LV124 (automotive electronic component testing). With uniform air circulation, independent heating/cooling zones, and programmable touchscreen controls, LIB industry thermal shock chambers allow you to simulate extreme high-to-low temperature transitions, uncover potential defects, and ensure your products meet global reliability benchmarks。
A Russian aerospace client recently leveraged a thermal shock test chamber to evaluate critical components. By cycling samples between -70°C and +200°C with rapid transitions, they uncovered minor material weaknesses that conventional tests had missed. They praised the chamber’s stable performance, minimal maintenance, and reproducible results, noting that it became an essential part of their quality assurance process.
Thermal shock testing exposes a product to rapid transitions between extreme hot and cold temperatures. Unlike standard environmental tests, which ramp temperatures slowly, thermal shock testing evaluates a product’s ability to withstand sudden thermal stress.
Key reasons to adopt a thermal shock test machine include:
Uncover latent defects: Detect micro-cracks, solder joint failures, or material deformations before mass production.
Ensure long-term performance: Products that endure thermal shock are more likely to survive field conditions.
Compliance with global standards: Thermal shock testing can help products meet MIL-STD-810, IEC 60068, and GB/T 2423.22, reassuring clients and regulators.
Cost reduction: Avoid product recalls, warranty claims, and field failures caused by thermal stress.
Key parameters that determine testing effectiveness include:
Parameter | Typical Value | .jpg "thermal_shock_chamber_(2).jpg") |
Temperature Range | -70°C ~ +220°C | |
Temperature Ramp Rate | 3–5°C per second | |
Recovery Time | ≤5 minutes | |
Sample Capacity | 50–200 kg (per basket or layer) | |
Standards Compliance | MIL-STD-810, IEC 60068, GB/T 2423.22 |
By simulating real-world thermal shocks, products are better prepared for transportation, storage, or operational extremes.

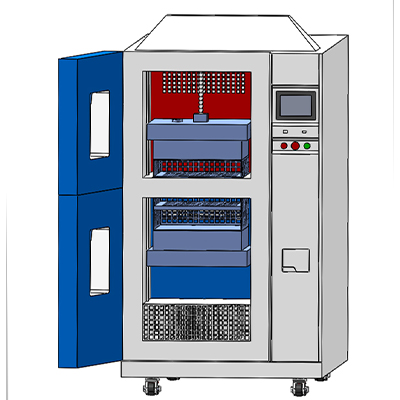

The two-zone thermal shock chamber consists of a preheating chamber and a precooling chamber. Samples are transferred rapidly between zones via a basket elevator, allowing simulation of high-to-low or low-to-high temperature changes in a matter of seconds.
Key advantages include:
Rapid temperature transitions: Sample transfer in under 3 seconds with recovery times ≤5 minutes.
Independent temperature zones: Hot and cold chambers operate separately, maintaining preset temperatures for seamless cycling.
Robust construction: Interior made of SUS304 stainless steel with mirror finish for corrosion resistance; exterior reinforced with coated steel.
Advanced air circulation: Fans ensure even heat distribution, providing consistent exposure for all samples.
User-friendly controls: Programmable touchscreen supports PID control, custom programs, remote monitoring, and multilingual interfaces.

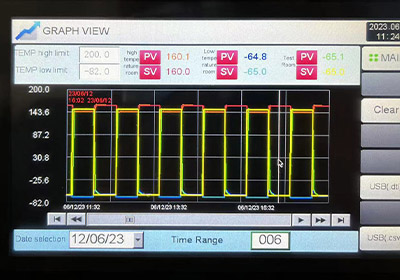

Data logging: USB ports allow easy export of temperature curves and test data for traceability and analysis.
Two-zone thermal shock chambers are ideal for electronics, small automotive parts, and PCB boards, providing a cost-effective yet high-precision solution for most thermal shock applications.
 |  | ||||
Model | TS-162 | TS-340 | TS-500 | TS-1000 | |
Interior Volume (mm) | 22L | 72L | 211L | 505L | |
Loading Capacity | 20kg | 30kg | 50kg | 60kg | |
Pre-heat Room | Upper limit Temperature | +220℃ | |||
Heating Time | Ambient ~ + 200℃, within 30 minutes | ||||
Pre-cool Room | Lower limit Temperature | -75℃ | |||
Cooling time | Ambient ~ -70℃, within 30 minutes | ||||
Test Room | High Temperature Exposure Range | Ambient +20 ~ +200°C | |||
Low temperature Exposure Range | –65 ~ -5°C | ||||
Temperature Fluctuation | ≤±0.5℃ | ||||
Temperature Deviation | ≤±3 ℃ | ||||
Temperature Recovery Time | Within 5 minutes | ||||
Cooling System | Mechanical compression refrigeration system | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Interior Material | SUS304 stainless steel | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 2 shelves | ||||
|
|
|
|
|
|
|
|

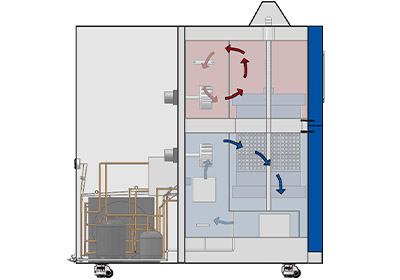

The three-zone thermal shock chamber incorporates an intermediate zone between hot and cold, allowing smoother transitions while maintaining rapid thermal cycling. This is particularly beneficial for large, delicate, or high-end components.
Key advantages include:
Wide temperature range: Capable of extreme transitions from -70°C to +220°C, simulating the most severe conditions.
Precision control: Fluctuation of ±0.5°C with maximum deviation ≤±3°C; equipped with PT100 sensors with 0.001°C accuracy.
Compact, space-saving design: Single test chamber circulates hot and cold air via pneumatic dampers, maintaining performance without a large footprint.
Durable construction: SUS304 stainless steel interior and reinforced exterior steel with high-density insulation.
Flexible sample handling: Adjustable perforated shelves supporting up to 50 kg per layer; customizable configurations available.
Advanced air circulation: Centrifugal fan ensures uniform temperature distribution across all samples.
Three-zone hot cold impact chambers are preferred in aerospace, automotive electronics, and military applications, where precision and reliability under extreme thermal cycling are critical.
LIB industry offers three primary solutions for thermal shock testing, depending on the product type and testing requirements:
Solution | Description | Ideal Applications |
Air-Air | Uses air as heat transfer medium in both zones | Electronics, plastics, consumer devices |
Air-Liquid | Combines air and liquid for faster heat transfer | Sensitive components requiring quick ΔT |
Liquid-Liquid | Uses liquid in both zones for maximum conductivity | Precision devices, high ΔT products |
|  |  |
| Air-to-Air Thermal Shock Chamber | Air-to-Liquid Thermal Shock Chamber | Liquid-to-Liquid Thermal Shock Chamber |
Benefits of multiple solutions:
Precise ΔT control for reliable stress simulation.
Uniform exposure to prevent localized thermal damage.
Meets demanding reliability and safety standards across industries.
LIB industry is committed to delivering high-performance, durable, and customizable thermal shock chambers. Key differentiators include:
Customizable two-zone and three-zone chambers: Tailored to meet unique sample sizes, temperature ranges, and operational requirements.
High-precision control: PID controllers, advanced sensors, and programmable touchscreens ensure accurate and repeatable results.
Durable and corrosion-resistant construction: Stainless steel interiors, protective coatings, and high-quality insulation materials.
Ease of use and data management: Remote monitoring, automated cycling, and USB data export streamline testing and reporting.
Compliance with global standards: Designed to satisfy MIL-STD-810, IEC, GB/T 2423.22, and other industry requirements.
Whether your goal is R&D testing, QA verification, or production validation, LIB industry thermal shock chambers deliver reliable, efficient, and traceable testing solutions.
Selecting the ideal thermal shock chamber depends on several factors:
Temperature range requirements: Does your product face extreme heat, cold, or both?
Sample size and weight: Ensure capacity matches your product dimensions.
Solution type: Air-Air, Air-Liquid, or Liquid-Liquid depending on thermal conductivity needs.
Zone configuration: Two-zone for standard testing; three-zone for precise, high-end applications.
Control and monitoring features: Programmable touchscreen, remote access, and data logging improve workflow efficiency.
LIB industry provides tailored recommendations and support, ensuring your thermal shock chamber aligns perfectly with your testing objectives.
LIB industry offers both two-zone and three-zone thermal shock chambers, with options for Air-Air, Air-Liquid, or Liquid-Liquid solutions, built to deliver precision, durability, and compliance with global standards.
Customizable thermal shock solutions | Life Long Service | 3-year warranty | Get your quote now
