How Integrated IP Testing Solutions for IP5X/IP6X and IPX1–IPX8 Reduce the Number of Test Systems Required

Sep 01 2026

Table of Content [Hide]

The Challenge: How Many Systems Does a Complete IP Testing Lab Really Need?

When establishing or upgrading an ingress protection (IP) testing capability in accordance with the IEC 60529 standard, laboratory managers face a significant infrastructure challenge. Covering the entire spectrum of protection—from basic physical access (IP1X) to continuous underwater immersion (IPX8)—traditionally requires procuring a disjointed fleet of single-purpose machines.

Taking the traditional approach of configuring separate equipment for each individual test method quickly leads to congested laboratory layouts, redundant control systems, increased calibration overhead, and inflated initial procurement costs.

Test Level	Test Method	Typical Traditional Equipment
IP1X–IP4X	Access to hazardous parts	Independent mechanical fixtures / probe kits
IP5X	Dust ingress	Dedicated Dust Test Chamber
IP6X	Dust-tightness	Dedicated Dust Test Chamber
IPX1–IPX2	Dripping water	Drip Box Test System
IPX3–IPX4	Spraying water	Oscillating Tube Water System
IPX5–IPX6	Water jets	Water Jetting Test System
IPX7	Temporary immersion	Immersion Tank
IPX8	Continuous immersion	Pressurized Immersion System

This raises a critical question for procurement and engineering teams: Can compatible IEC 60529 IP test methods be intelligently combined into fewer systems without sacrificing the exact environmental conditions required by the standard?

LIB Industry's Integrated IP Testing Solution

To resolve the spatial and operational inefficiencies of traditional IP testing, LIB Industry engineers equipment that consolidates multiple test levels into cohesive, multi-functional platforms. By combining overlapping capabilities, laboratories can achieve full IEC 60529 compliance with just four highly integrated modules.

1. IP1X–IP4X Test Probe Kit

Testing for protection against solid foreign objects and access to hazardous parts does not require occupying a large environmental chamber. LIB provides a complete, precision-machined toolkit encompassing:

IP1X test probe (sphere)
IP2X jointed test finger
IP3X test rod

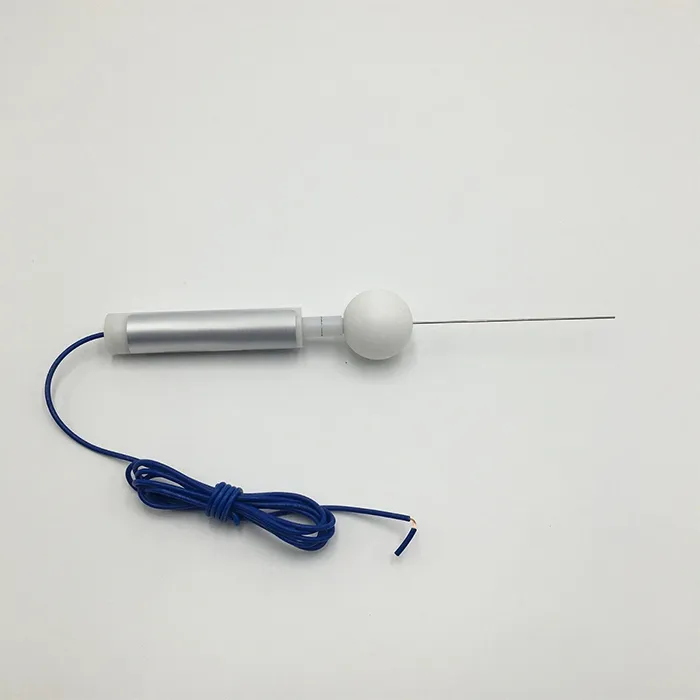

IP4X test wire

Each tool is calibrated to apply the exact test force and dimensional tolerances specified by IEC 60529. These tests can be performed using dedicated probes directly on the workbench, freeing up floor space and eliminating the need for bulky mechanical testing stations.

2. IP5X / IP6X Dust Test Chamber (DI Series)

To test for dust ingress (IP5X) and absolute dust-tightness (IP6X), LIB’s DI Series IP Dust test chamber integrates the necessary airflow, powder circulation, and vacuum capabilities into a single programmable chamber.

Useful Volume: Scalable configurations from 800L (DI-800) up to 2,000L (DI-2000), accommodating various sample dimensions.
Environmental Control: Ambient to +50℃ temperature range with strict humidity control (< 30% RH) to keep talcum powder dry and circulating freely.
Test Medium Parameters: Conforms strictly to IEC standards with a 50μm normal wire diameter and 75μm nominal gap width for the dust filter grid.
Smart Interface: Programmable color LCD touch screen controller with Ethernet connectivity, housed in a highly durable A3 steel plate exterior with a SUS304 stainless steel interior.
Safety Integration: Includes over-temperature, over-current, and earth leakage protection, alongside a built-in dust-proof 16A socket to power specimens during testing.

Instead of requiring separate systems for varying dust protection levels, one highly controlled DI Series chamber seamlessly supports both IP5X and IP6X protocols.

3. Combined IPX1–IPX6 Water Test Chamber (RD Series)

The RD Series Rain Spray Test Chamber represents the pinnacle of footprint reduction. Rather than deploying three separate machines for dripping, oscillating sprays, and pressurized water jets, this platform consolidates IPX1 through IPX6 capabilities into a single enclosed chamber.

Useful Volume: 810L (RD-800C) or 2,400L (RD-1200C) internal capacity, ensuring ample space for diverse electronics and automotive parts.
Drip Test (IPX1/IPX2): Integrated drip trays (up to 1000 × 1000mm) delivering precise, gravity-fed water drops.
Spray Test (IPX3/IPX4): Oscillating tubes (400mm or 600mm radius) adjustable from 0 to ±180° with φ0.4mm spraying holes spaced at 50mm.
Water Jets (IPX5/IPX6): Easily interchangeable jet nozzles—6.3mm for IPX5 and 12.5mm for IPX6—designed to deliver water at the required 2.5 to 3-meter distance.
Closed-Loop Hydrology: Features a built-in water tank, booster pump, automatic water supply, and water purification system, eliminating the need for complex external laboratory plumbing.
Sample Rotation: A built-in turntable with an adjustable speed of 1 r/min ensures all angles of the specimen are exposed.

Instead of purchasing separate equipment for dripping, spraying, and water jet tests, a combined RD Series configuration consolidates all IPX1–IPX6 testing into one automated, self-contained system.

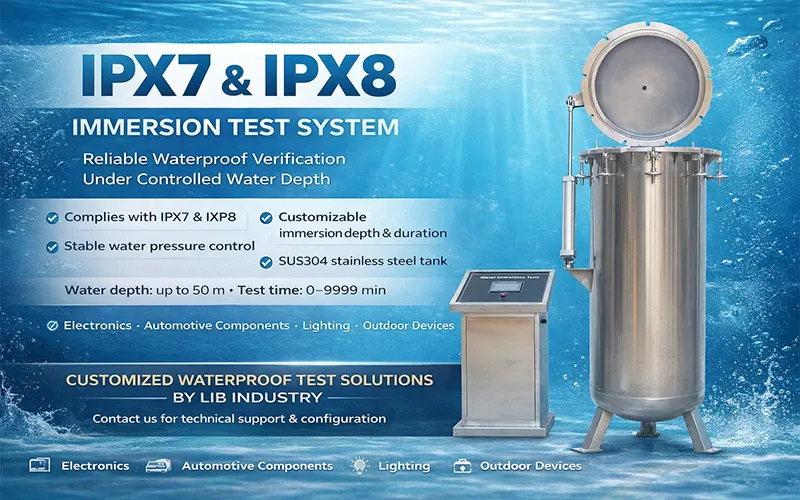

4. IPX7 / IPX8 Immersion & Pressure Test System (R78-600)

For high-level waterproofing validation, the R78-600 water immersion test system handles both temporary submersion and extreme continuous pressure testing.

Test Capacity: Simulates up to 50 meters of water depth pressure, easily accommodating rigorous IPX8 continuous immersion standards dictated by specific product protocols.
Chamber Dimensions: Diameter 600mm × Height 1500mm internal workspace.
Structural Integrity: Constructed with heavy-duty A3 steel plates featuring a 15mm wall thickness and a secure pneumatic lid for operator safety.
Automated Operation: Features an independent storage water tank, automatic water supply, and a programmable LCD touchscreen controller to precisely manage pressurization curves and test durations.

Because IPX8 conditions are generally agreed upon by the manufacturer and user (but must be more severe than IPX7), this highly pressurized tank naturally encompasses the baseline 1-meter, 30-minute requirement of IPX7 while providing the extreme depth simulation needed for IPX8.

How Fewer Systems Can Cover More IP Test Levels

The engineering principle behind modern laboratory equipment is intelligent consolidation. When components share similar baseline requirements—such as structural enclosures, power supplies, water reclamation systems, and PLC controllers—they can be engineered to execute multiple test profiles.

Testing Requirement	Separate Equipment Approach	LIB Integrated Approach
IP1X–IP4X	Multiple individual mechanical testing stations	One precision test probe kit
IP5X	Standalone IP5X dust chamber	IP5X/IP6X combined dust chamber
IP6X	Standalone IP6X dust chamber	Same combined dust chamber
IPX1–IPX4	Drip box + separate oscillating tube system	Combined IPX1–IPX6 water system
IPX5–IPX6	Separate high-pressure jetting bay	Same combined water system
IPX7–IPX8	Shallow tank + separate pressure vessel	Combined high-pressure immersion system

By examining the technical mechanisms, the rationale for consolidation becomes clear. For dust testing, a single negative-pressure vacuum and talcum powder recirculation system can alternate between the dust-settling requirements of IP5X and the active vacuum-draw requirements of IP6X. For water testing, a single advanced PLC controller can seamlessly route water pressure from a centralized purification tank to either the ceiling drip board, the oscillating spray tubes, or the high-flow jet nozzles.

The goal is not to perform every IP test in one machine. The goal is to achieve the required IP testing capability with fewer separate test systems.

Consolidating these functions drastically cuts down on water waste, reduces the electrical load on your facility, and limits the number of machines requiring annual metrology calibration.

Build Your IEC 60529 IP Testing Laboratory with LIB Industry

A complete IEC 60529 testing laboratory can be configured with four core systems:

IP1X–IP4X Test Probe Kit
DI Series IP5X/IP6X Dust Test Chamber
RD Series IPX1–IPX6 Water Test Chamber
R78-600 IPX7/IPX8 Immersion & Pressure Test System

This configuration covers the complete IP1X–IP6X and IPX1–IPX8 testing range while reducing the number of separate machines, saving laboratory space, and simplifying equipment management.

LIB Industry can also customize chamber dimensions, turntable load capacity, water flow, immersion depth, sample fixtures, and power requirements according to your products and laboratory conditions.

LIB Industry provides a turnkey IP testing solution, from equipment configuration and manufacturing to installation, commissioning, and training.

We offer a three-year warranty and lifetime service, with technical support and spare parts assistance throughout the equipment lifecycle.Planning an IEC 60529 IP testing laboratory? Contact LIB Industry for a customized, space-efficient testing solution.
