Water exposure is a common reliability risk for household appliances. Kitchen equipment may be splashed during daily use or cleaning. Bathroom and cleaning appliances can face direct water spray, while outdoor household products may be exposed to rain and stronger water jets.
If water enters through housing joints, buttons, connectors, or other openings, it can cause electrical failure, corrosion, short circuits, or even safety risks.
So how can manufacturers verify that an appliance has sufficient water protection before it reaches the market?
IPX5 and IPX6 water jet testing provides a controlled way to evaluate enclosure protection under different water spray conditions. With the right test equipment, manufacturers can identify sealing weaknesses, improve enclosure designs, and verify whether products meet their required ingress protection level.
LIB Industry provides IPX5/IPX6 water spray jetting chambers designed to support repeatable waterproof testing for household appliances, electrical products, and other equipment exposed to water.
Different household appliances encounter different levels of water exposure, but the underlying problem is similar: water must be prevented from reaching sensitive internal components.
Coffee machines, food processors, cooking appliances, beverage equipment, and other kitchen products may experience splashing, cleaning water, or accidental liquid exposure.
Potential weak points include:
Housing joints and seams
Control buttons and switches
Power connectors
Cable entries
Ventilation openings
Door and cover seals
IPX5/IPX6 testing allows engineers to direct water at these areas and determine whether the enclosure provides sufficient protection.
Appliances used near sinks, showers, wet floors, or during cleaning may encounter more direct water exposure. A design that performs well under ordinary splashing may not necessarily withstand stronger water jets.
Testing helps manufacturers evaluate sealing structures and identify whether water can penetrate critical areas during cleaning or operation.
Outdoor products can face rain, splashing, and high-pressure water during cleaning. For these products, water protection needs to be evaluated under controlled and repeatable conditions rather than relying only on design assumptions.
This is where laboratory water jet testing becomes valuable.
IPX5 and IPX6 are defined in IEC 60529 and represent different levels of protection against water jets.
Parameter | IPX5 | IPX6 |
Nozzle diameter | 6.3 mm | 12.5 mm |
Water flow rate | 12.5 ± 0.625 L/min | 100 ± 5 L/min |
Water exposure | Water jets | Powerful water jets |
Minimum test duration | 3 minutes | 3 minutes |
Typical application | General water spray exposure | Stronger water jet exposure |
For IPX5, a 6.3 mm nozzle delivers approximately 12.5 L/min of water. IPX6 uses a larger 12.5 mm nozzle and approximately 100 L/min, creating a substantially stronger water jet.
The appropriate test level should be determined according to the product's intended use, design requirements, and applicable standards.
For manufacturers developing household appliances, testing at the required protection level helps verify the enclosure before production and certification.
Water ingress does not always occur through an obvious opening. A small gap around a connector or an imperfect seal may allow water to enter during repeated exposure.
An IPX5/IPX6 test can help engineers identify:
Weak enclosure seals — Water may penetrate through poorly designed joints or covers.
Unprotected electrical connections — Connectors, terminals, and cable entries can become potential ingress points.
Poor button or control protection — Gaps around operating interfaces may allow water to reach internal components.
Insufficient housing design — The overall enclosure may not provide adequate protection under the required water conditions.
The value of testing is therefore not simply determining whether a product "passes" or "fails." Test results can provide useful feedback for improving seals, housing structures, protective covers, and component placement during product development.
When manufacturers need to test different household appliances, the challenge is not only generating water. The equipment must maintain stable flow conditions, provide repeatable operation, and allow convenient sample positioning.

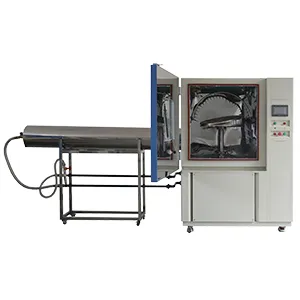

LIB Industry's IPX5 X6 Water Spray Jetting Chamber is designed for this purpose.
The equipment supports both IPX5 and IPX6 testing, allowing users to perform different water jet tests in one testing system. Its key design features include:
Feature | LIB Solution |
IPX5/IPX6 testing | One system supports both water jet testing levels |
SUS304 construction | Durable stainless-steel test workspace |
Water flow control | Supports stable flow conditions for repeatable testing |
Programmable control | Simplifies parameter setting and test operation |
Water circulation | Supports efficient water use during testing |
Sample positioning | Suitable for different household appliance configurations |
For laboratories and manufacturers that test multiple product types, this combined design can reduce the need for separate testing equipment and make daily testing more convenient.
LIB can also provide customized testing arrangements according to the customer's sample size, test requirements, and laboratory conditions.
Different products require different levels of water and dust protection testing. In addition to IPX5/IPX6 water jet testing, LIB Industry provides complementary equipment for rain, immersion, dust, and sand testing.
|  |  |

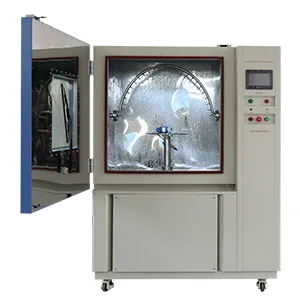

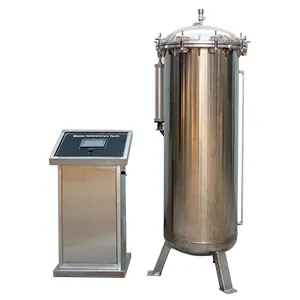

| IPX1–IPX6 Water IP Test Device Combines six water ingress protection levels from IPX1 to IPX6, covering dripping, spraying, splashing, and water jet testing in one system. | IPX7 IPX8 Water Immersion Test Equipment Designed for IPX7 and IPX8 immersion testing, helping manufacturers evaluate waterproof performance under controlled water depth and immersion conditions. | IPX3 X4 Test Chamber Designed for IPX3 and IPX4 water spray and splash testing, providing controlled exposure from different directions for enclosure protection evaluation. |
 |  |  |

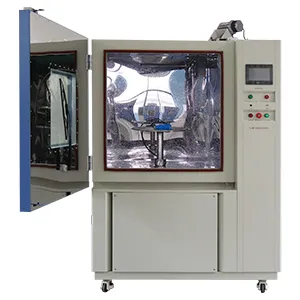

| JIS D0203 Rain Test Chamber Designed for JIS D0203 rain and spray testing, providing controlled water exposure for products requiring specialized rain resistance evaluation. | IP6X IP5X Ingress Test Chamber Designed for IP5X and IP6X dust ingress testing according to IEC 60529, helping manufacturers evaluate enclosure sealing and resistance to dust penetration. | MIL STD 810 Dust Chamber Simulates blowing dust and sand conditions according to MIL-STD-810, supporting reliability testing for products used in harsh outdoor and industrial environments. |
LIB Industry provides a complete range of rain and waterproof test chambers covering IPX1 to IPX9K, from vertical dripping and water spraying to high-pressure and high-temperature water jet testing. LIB also offers IP5X/IP6X dust test chambers and MIL-STD-810 dust and sand chambers for comprehensive ingress protection and environmental reliability testing.
Whether you need a single IP test chamber or a complete waterproof and dust testing laboratory, LIB Industry can provide a suitable standard or customized solution based on your products, testing standards, and laboratory requirements.
Although household appliances are an important application, IPX5/IPX6 water jet testing is not limited to this industry.
The equipment can be used for:
Kitchen and bathroom appliances
Electrical enclosures
Consumer electronic products
Outdoor electrical equipment
Small industrial devices
Components requiring water ingress protection verification
This makes the chamber suitable for both product development and production quality control.
Manufacturers can use the same testing concept to evaluate different enclosure designs and compare sealing solutions before finalizing a product.
Choosing a water spray test chamber is not only about purchasing equipment. Manufacturers also need technical support to make sure the equipment matches their testing requirements.
LIB Industry provides complete support from equipment selection to after-sales service.
As an environmental simulation test chamber manufacturer, LIB can recommend suitable testing configurations based on product dimensions, IP rating requirements, testing standards, and application conditions.
For projects requiring special sample fixtures, chamber dimensions, control functions, or other arrangements, customized solutions can also be discussed with LIB engineers.
LIB supports customers with:
Equipment selection and technical consultation
Customized test chamber solutions
Installation and operation training
Three-year warranty
Lifetime maintenance support
24/7 English after-sales service
This allows customers to purchase not only a testing machine, but a complete waterproof testing solution for long-term product development and quality control.
LIB Industry's IPX5 X6 Water Spray Jetting Chamber combines IPX5 and IPX6 testing in one system and can be customized for different product testing requirements.
If you are developing a household appliance or electrical product that requires water ingress protection testing, contact LIB Industry to discuss your IPX5/IPX6 testing requirements.
It is a waterproof testing system designed to perform both IPX5 and IPX6 water jet tests. It evaluates whether an enclosure can prevent harmful water ingress under specified test conditions.
IPX5 uses a 6.3 mm nozzle and approximately 12.5 L/min water flow, while IPX6 uses a 12.5 mm nozzle and approximately 100 L/min. IPX6 therefore represents a substantially stronger water jet exposure.
Yes. LIB can discuss customized chamber dimensions, sample fixtures, control functions, and other configurations according to the customer's product and testing requirements.
LIB provides a three-year warranty, lifetime maintenance support, and 24/7 English after-sales service. Technical assistance is available for equipment operation and maintenance throughout the service life of the chamber.
