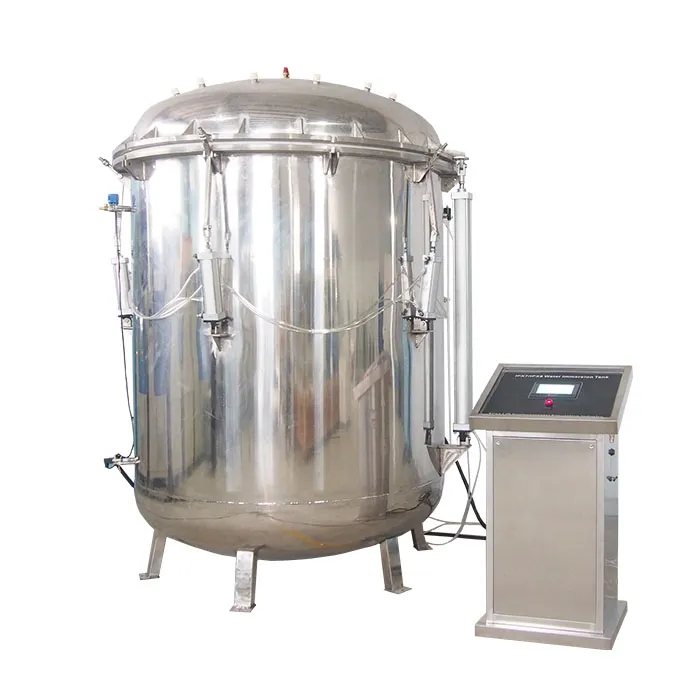

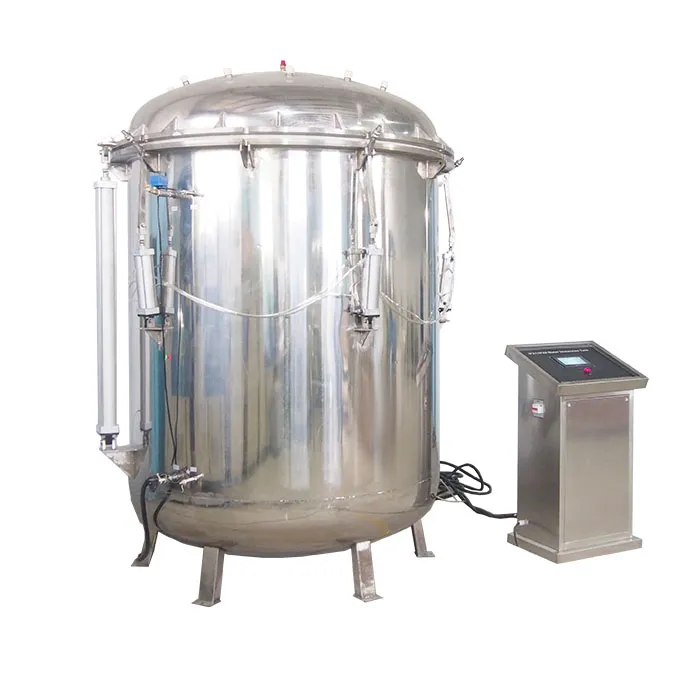

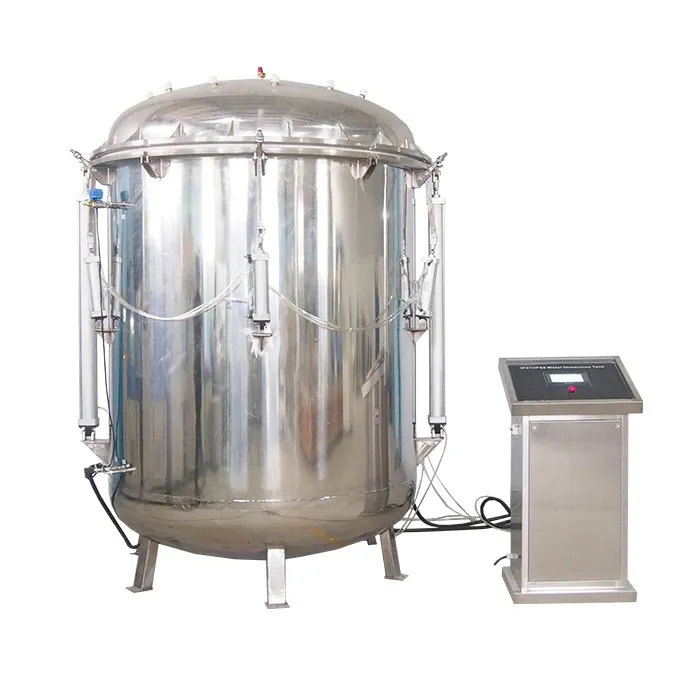

IP68 Water Proof Testing unit

Name: IP68 Water Proof Testing unit
Brand: Xi'an LIB Environmental Simulation Industry

The IP68 Testing Unit from LIB industry incorporates two independent testing solutions in one: IP6X Dustproof Testing Unit and IPX8 Waterproof Testing, enabling comprehensive evaluation of products’ ingress protection complying with IEC 60529. The P68 water proof testing unit supports configurable test parameters including immersion depth up to 3 meters(The standard model can simulate water depths up to 50 meters or deeper), duration up to 72 hours and water temperatures +10°C to +40°C, simulating continuous submersion.

Programmable cycles, adjustable immersion speed, and automatic water intake, water control system guarantee repeatable, high-precision results. Optional monitoring sensors track real-time performance and test conditions. LIB industry also provides full IPX series solutions including dust test chambers and rain test chambers, enabling labs and manufacturers to comprehensively validate waterproofing.

Model: R78-600

Standard: ISO 20653, IEC 60529, IPX7, IPX8

IP68 Waterproof Testing Unit – Key Technical Advantages

1. High-Strength Custom Water Tank:

Tank dimensions, shape, and material are fully customizable, using thick, corrosion-resistant reinforced alloys, capable of withstanding hydrostatic pressures equivalent to 50 m depth or more.

2. Precise Depth Simulation:

Hydraulic immersion actuators provide controlled submersion up to 50 m or more, with programmable speed and trajectory, enabling accurate replication of real-world water pressure conditions.

3. Advanced Sealing Mechanism:

Pneumatic lid locking system guarantees airtight closure, maintaining consistent hydrostatic pressure and preventing water ingress during high-depth testing.

4. Remote Operation & Monitoring:

Integrated control system allows PC and mobile-based remote monitoring, tracking immersion depth, water temperature, and test cycles with real-time feedback.

5. Safety & Pressure Management:

Equipped with automatic pressure relief valves, interlocks, and overload protection, ensuring operator safety and preventing damage to both samples and equipment.

6. Standards-Compliant & Modular:

Fully compliant with IEC 60529, with modular design for single or multiple-unit setups, adaptable to laboratory or production-scale IP68 testing requirements.

Specifications of IPX8 Test Equipment

Model	R78-600
Internal Dimension (mm)	Diameter 600mm * Height 1500 mm
Overall Dimension (mm)	Diameter 800mm * Height 1800 mm
Pressure	50m water depth pressure
Open mode	Pneumatic lid
Material	A3 steel plate, wall thickness 15mm
Water Supply System	Storage water tank, Automatic water supply
Water depth	Water depth pressure range 1~50m, adjustable
Controller	Programmable color touch screen type controller, display temperature, specimen surface temperature, water depth, run time.

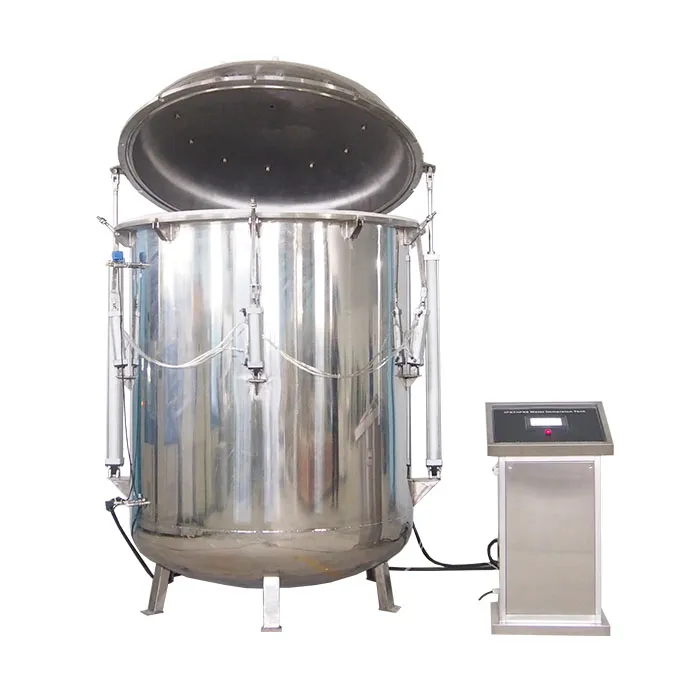

Open/close	Open/close lid by pneumatic lift, with safety lock.

IP68 Waterproof Testing Unit – Key Design Details

Sample Rack	Maximum load 50 kg, fully height-adjustable. Racks can be aligned on both sides of the handle, ensuring stable positioning and uniform water exposure. Constructed from corrosion-resistant stainless steel, suitable for repeated high-pressure immersion.
Safety Lock System	High-strength manual locks, up to 12 units (customizable), equipped with a locking tool. Pneumatic bar enables smooth lid opening/closing while maintaining airtight sealing. Ensures safety and consistent pressure during deep-water tests.
Control System	PLC touchscreen controller allows precise setting of pressure, immersion duration, and water temperature. Monitors pressure retention, relief operations, and provides real-time equipment status for fully automated, repeatable testing.
Lid & Pneumatic Mechanism	Air-driven pneumatic cover maintains uniform hydrostatic pressure, prevents leakage, and integrates with safety interlocks to protect operators under extreme conditions.
Test Ports	Customizable test holes (10–100 mm diameter) allow cables, sensors, or connectors to pass through while maintaining full waterproof integrity.

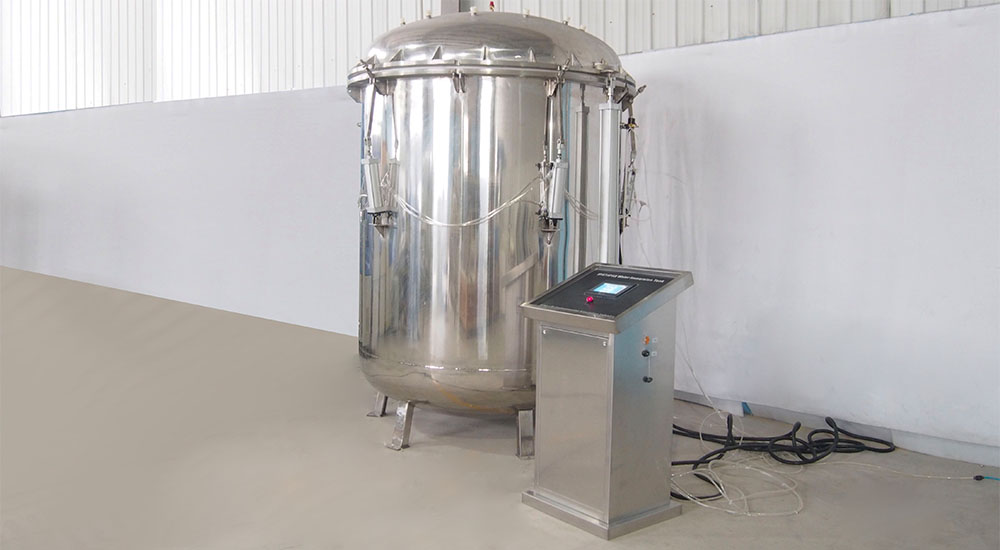

IP68_Water_Proof_Testing unit8.jpg

LIB industry’s custom IP68/IPX8 waterproof testing solutions come with 3-year warranty and lifetime service. Enjoy 1–3 hour rapid response, fast delivery, and fully tailored configurations, and expert guidance for all your waterproof testing needs. Contact us now inquiry@libtestchamber.com for detailed specs, personalized quotes, and expert guidance.
