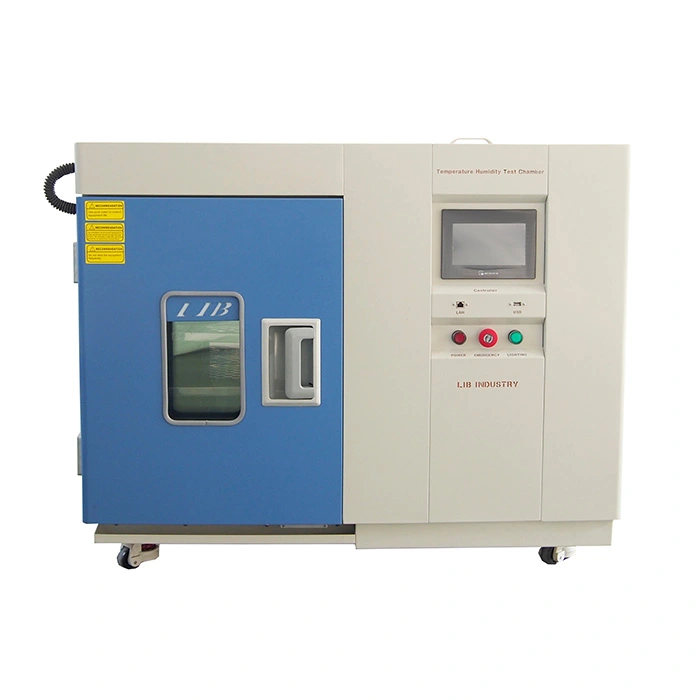

Portable temperature test chamber

Portable temperature test chamber is popular for its small appearance and powerful functions.Three standard temperature range can be selected:the lowest temperature -20℃,-40℃, -70℃ and the highest temperature can reach at +150℃ with 3℃/min heating rate.The temperature is precise and stable.



Model: TH-50A ,TH-50B, TH-50C

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D



Features and Benefits of Portable Temperature Test Chamber

1. Small footprint, easy to place on a bench or workbench, suitable for laboratories and workplaces with limited space.Easy to move and carry to meet the test needs of different sites.



2. The temperature is precisely controlled by heating system and cooling system and the air fan equipped at the back of workroom guarantees temperature even distribution with ±0.5 ℃ temperature fluctuation.




3. With multiple safety protection measures, such as overheat protection, overvoltage protection, leakage protection and the use of SUS304 to ensure safe and reliable operation of the portable temperature test chamber.




Specifications of Portable Temperature Test Chamber

Model

TH-50

TH-80

Internal Dimension (mm)

320*350*450

400*400*500

Overall Dimension (mm)

820*1160*950

900*1210*1000

Interior Volume

50L

80L

Heat load

1000W

Temperature Range

A : -20℃ ~ +150 ℃

B : -40℃ ~ +150 ℃

C: -70℃ ~ +150 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Cooling Rate

1 ℃ / min

Heating Rate

3 ℃ / min

Cooling system

Mechanical compression refrigeration system

Controller

Programmable color LCD touch screen controller

Ethernet connection

Safety Device

Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection;

Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection

Exterior Material

Steel Plate with protective coating

Standard Configuration

1 Cable hole (Φ 50,) with plug; 2 shelves

Weight

190kgs

220kgs

Configuration of Portable Temperature Test Chamber


①Workroom

2pcs punching sample shelf SUS304 stainless steel whose standard load is 50KGS for each layer ;The height is adjustable and can be removed directly to facilitate the various sizes of test samples.PT 100 Class temperature feeds real-time data to ②control system.




②Control system

Touch screen controller, temperature and humidity test time, cycle times, etc. can be set on the controller, data can be downloaded.




③Air circulation system

2 pcs centrifugal fan are located at the top of workroom with low noise circulation air discharge.




④Heating system

Heating system nichrome heater owns high heating efficiency, long life.Combined with ③the air circulation system, the heat distribution in the workroom is uniform.




⑤Cooling system

The cooling system includes compressor, condenser, throttling element and evaporator,and the standard cooling rate is 1℃/min.
