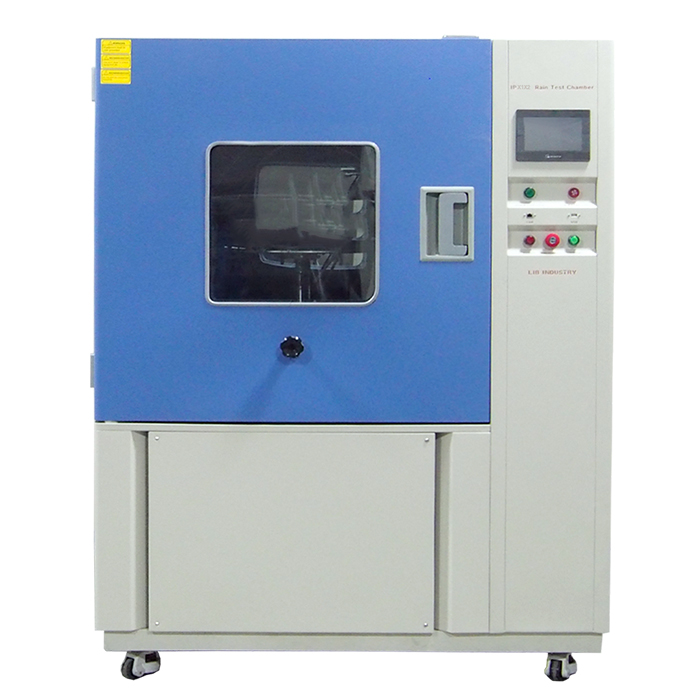

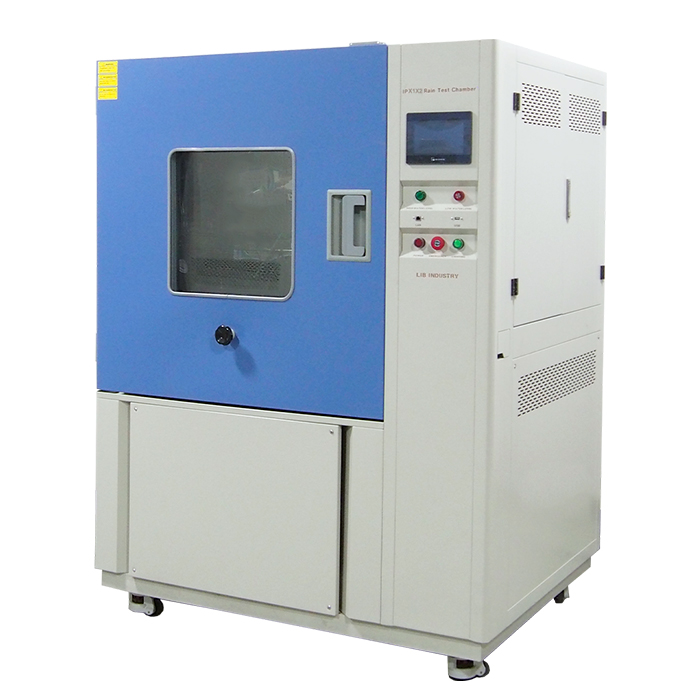

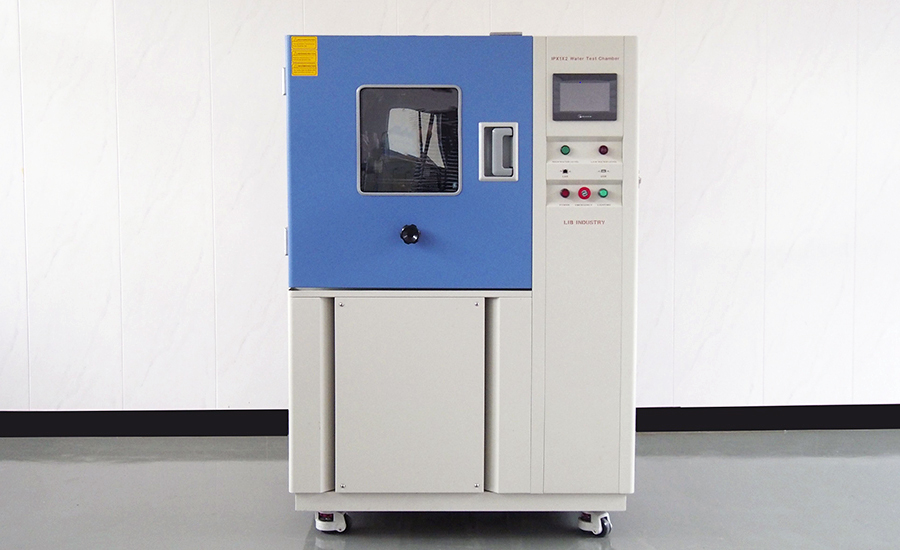

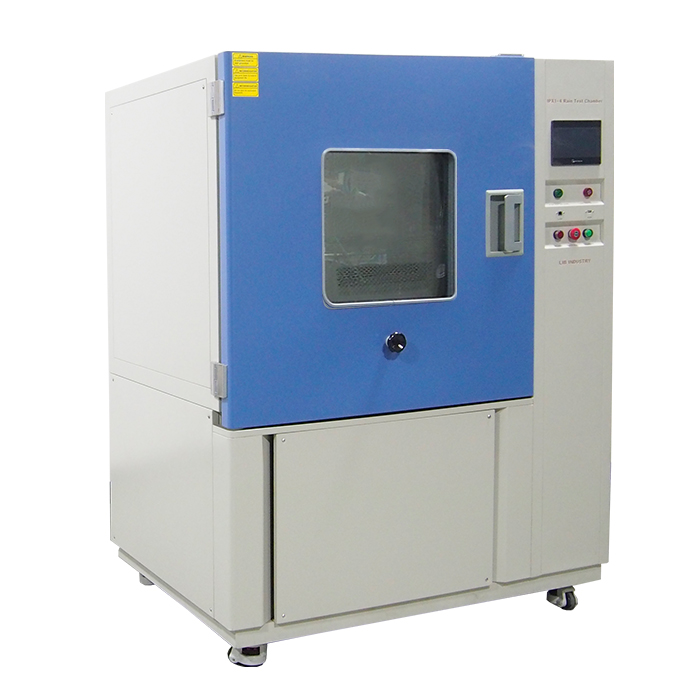

Water Drop Test Chamber

Name: Water Drop Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The water drop test chamber is used to evaluate the anti-dripping performance of the product and complies with the test requirements of IEC 60529 for the IPX1 and IPX2 grades in the IP protection level. This water drop test chamber tests the protective ability of electronic and electrical equipment, household appliances or outdoor products against water droplet penetration during use by simulating the conditions of vertical dripping (IPX1) and dripping at a 15° tilt (IPX2) in a natural rainfall environment.

Model：R12-800C,R12-1200C

Standard: ISO 20653, IEC 60529, UL 50E, UL 1598, UL 153, UL1573, UL 60950-1, IPX1, IPX2

Features and Benefits of Water Drop Test Chamber

1. Multi-angle drip tray, switching between IPX1 and IPX2,IPX1: vertical drip test, lasting for 10 minutes, with a water volume of 1 mm/min .IPX2: Conduct drip tests in four directions at a 15° tilt, with each direction lasting 2.5 minutes, totaling 10 minutes.

2.The entire SUS304 structure (working chamber and waterway system) has strong corrosion resistance and is durable,ensuring that the chamber operates stably and has a long service life in a humid and high-water working environment.

3. Support multi-product testing, adapt to diverse demands, and be applicable to product testing of different sizes, structures and uses. The workroom size can be customized.

4. Precisely control the dripping water volume (flow regulation and distribution), ensure the consistency of the test standards, stably output the dripping rate (1 mm/min) in accordance with the IEC 60529 standard, and maintain a uniform and consistent dripping water distribution.

Specifications of Water Drop Test Chamber

Model	R-800C	R-1200C
Internal Dimensions (mm)	900950950	130013501370
Overall Dimensions (mm)	118014201920	154018202200
Useful Volume (L)	810	2400
Drip Tray Size	600*600	1000*1000
Spraying Hole Diameter	φ0.4mm
Turntable Rotation Speed	1r/min (Adjustable speed)
Water Pressure Control	Flow meter
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Double layer insulating glass with wiper

Details of Water Drop Test Chamber

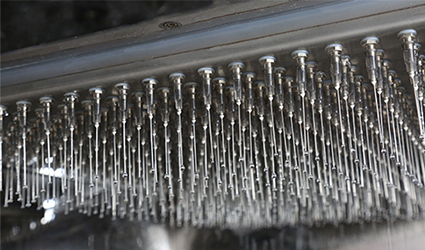

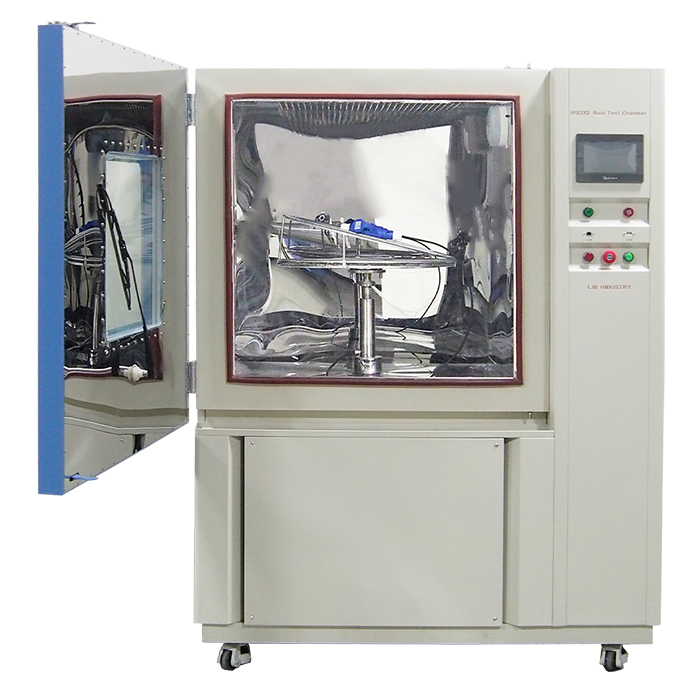

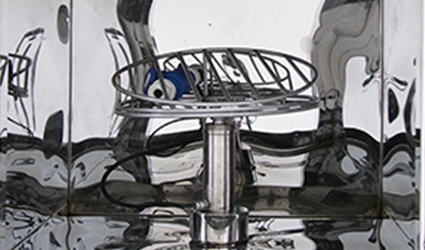

Turntable	Drip Tray
Carry the sample to be tested and is equipped with a waterproof power supply to power the test piece. It has strong load-bearing performance and is suitable for a variety of industrial and consumer products. Height adjustable.	Simulate the dripping environment in a natural state. The drip holes are arranged with a spacing of 20mm, ensuring uniform drip distribution.Precisely control the water flow rate(1mm/min). Support the replacement of drip trays of different sizes to meet various testing requirements.

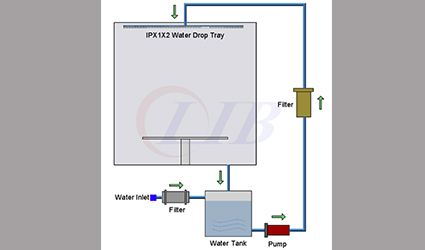

Water Supply & Recycling System	Intelligent operation interface
Includes three links: automatic water supply, recycling and filtration. The large-capacity circulating water tank (equipped with high and low water level float balls) and filtration system automatically recover and purify the water that drips during the testing process for reuse, reducing water resource waste.	Color touch screen, multiple languages available, multiple test programs can be set, parameters can be set with one click (test time, drip flow rate) and real-time monitoring. The operation process is simple and intuitive, and the test data is automatically recorded.

Choose LIB

We offer a full range of rain test equipment from IPX1 to IPX9, and support customized equipment to meet the needs of various products and industries. 3-year warranty and lifetime service. Welcome to contact LIB for exclusive solutions and technical support!
