In today’s competitive market, material performance and appearance are critical to brand reputation. Faded fabrics, discolored coatings, or brittle plastics can quickly undermine customer trust and lead to costly returns. Ensuring color fastness and durability is essential for manufacturers, quality assurance teams, and R&D departments.

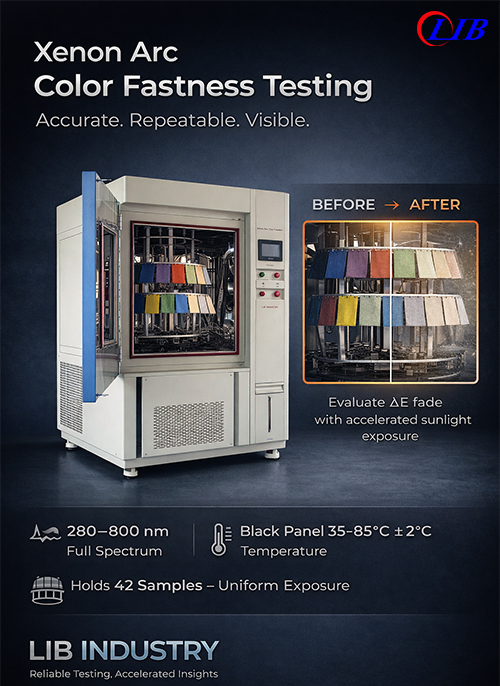

The LIB industry Color Fastness and Durability Xenon Arc Light Chamber provides a controlled environment to evaluate how materials withstand UV light, heat, humidity, and water exposure. By simulating real-world conditions, it delivers accelerated aging results that help companies predict product lifespan, optimize formulations, and maintain high customer satisfaction.
Textiles & Apparel
|
|
Coatings & Paints
| |
| Plastics & Polymers Plastics and polymers are vulnerable to UV degradation, discoloration, and brittleness. This xenon test chamber evaluates material performance under stress conditions.
| |
Consumer Goods
| |
The LIB industry Xenon Arc Light Chamber accelerates material aging and ensures reliable quality by combining full-spectrum sunlight simulation with precise temperature and humidity control, uniform rotating sample exposure, and realistic spray cycles. This integrated approach allows testing to proceed up to 50 times faster than natural outdoor exposure, providing manufacturers with rapid and accurate insights into product durability. The automated PID control guarantees repeatable and consistent results across multiple tests, while exportable data enables full traceability, supporting efficient R&D, quality assurance, and compliance with international standards.
 |  |
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1300*1420*1800 mm |
Sample holder | Adjustable speed, 1r /min |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp with inner quartz and outer borosilicate filter |
Irradiance Range | 150 W/㎡ |
Bandwidth Measurement | 300~400 nm |
Chamber Temperature Range | -40～ 100 ℃ ±2 ℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2 ℃ |
Humidity Range | 30 % ~ 98 % RH |
Water Spray Cycle | 1~9999 H 59 M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Radiometer | UV Radiometer, Tolerance: ±5 % |
The 4500 W water-cooled xenon lamp simulates full-spectrum sunlight (280–800 nm) with high stability.
Quartz and borosilicate filters improve light purity and allow wavelength-specific testing.
Lifespan up to 1600 hours, reducing maintenance and replacement costs.
Water-cooling system ensures heat dissipation while promoting environmental sustainability through automated circulation.
|
|
xenon lamp and filters
Supports up to 42 samples, rotating to ensure consistent light and spray exposure.
Suitable for textiles, coatings, plastics, leather, and more.
Easy installation with a stable, aesthetically pleasing design.
Blackboard temperature control: 35–85°C ±2°C; humidity: 30–98% RH ±2.5%
Measures actual irradiance and sample temperature for realistic aging data.
Radiometer ensures precise, reproducible light intensity measurements, meeting ISO 105, ISO 4892, ASTM G155 standards.
Detects water levels and replenishes automatically, reducing manual intervention.
Spray nozzles simulate rainfall and condensation cycles, accelerating aging.
Closed-loop water system with multi-stage filtration reduces consumption and ensures clean operation.

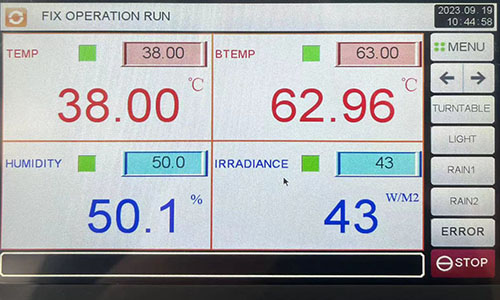

Programmable PID touchscreen controls temperature, humidity, and light intensity.
Stores up to 120 programs, each with 100 segments, allowing compliance with multiple standards.
Multi-language interface and Ethernet/Wi-Fi/RS232 support centralized lab monitoring.
SUS304 stainless steel interior resists high/low temperatures, moisture, and corrosion.
Heavy-duty adjustable casters ensure stability on uneven floors.
Rotating sample holders and water-cooled lamp provide uniform exposure and accurate test results.
Light filters: daylight, window glass, UV-extended.
Sample racks: rotary or flat, multiple dimensions.
Walk-in chambers, additional fixed glass windows, and controller mounting positions available.
Testing color fastness and durability is essential for predicting product lifespan and optimizing formulations. The LIB industry Xenon Light Fastness Test Chamber allows you to simulate sunlight, temperature, humidity, and water cycles in a controlled environment.
Select Materials: Suitable for textiles, dyed fabrics, coatings, or plastics.
Cut and Label: Standard sizes (e.g., 20×9.5 cm) or customer-specific, with clear numbering for tracking.
Mount Samples: Use the rotating sample holder or flat racks. Up to 42 samples can be tested simultaneously for uniform exposure.
Choose Standard: ASTM D4329, ISO 105-B02, or other applicable standards.
Light Filters: Full spectrum, UV-enhanced, or window glass simulation.
Temperature & Humidity: Black panel temperature 35–85°C ±2°C, humidity 30–98% RH ±2.5%.
Water Spray Cycle: Optional automated spray or condensation mode simulates rain or dew.
Test Duration: Adjustable per standard; accelerated mode shortens testing while ensuring accuracy.
 |
|
| Control system | Rain spray system |
Start the xenon test chamber with rotating samples for even light and spray exposure.
Monitor black panel temperature, irradiance, and humidity in real time.
Water-cooled xenon lamps ensure stable light intensity and reproducible results.
Visual Inspection: Compare with unexposed samples to assess fading or discoloration.
Color Measurement: Use a colorimeter to calculate ΔE values for quantitative color fastness.
Record Data: Combine light, temperature, humidity, and spray data for full traceability.
R&D can adjust dyes, additives, or coating formulations.
QA teams can verify product compliance, reduce return rates, and ensure customer satisfaction.
Tips:
Rotate samples for uniform exposure and avoid local overexposure.
Regularly calibrate light intensity and sensors to maintain accuracy.
Multi-segment programs can simulate diverse real-world environments.
Investing in a LIB industry Color Fastness and Durability Xenon Arc Light Chamber gives manufacturers a powerful tool for accelerated, reliable testing. It ensures consistent results for textiles, coatings, plastics, and consumer goods, helping reduce risks, improve quality, and shorten time-to-market.
Comprehensive Support and Warranty:
3-year warranty covering major components
Lifetime technical support for installation, maintenance, and training
Global service support to ensure long-term equipment reliability
Contact LIB industry today to discover how our Xenon Arc Light Chambers can improve testing efficiency, enhance material performance, and provide reliable, repeatable results across all your products.
