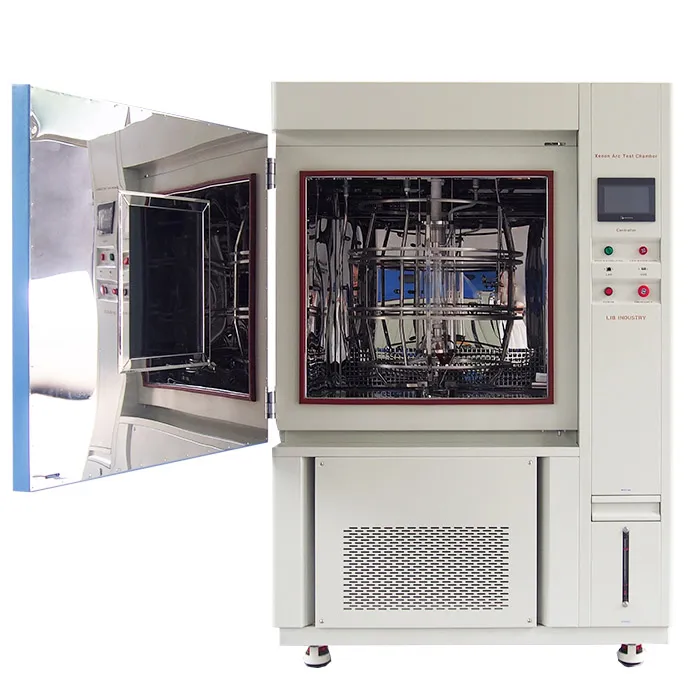

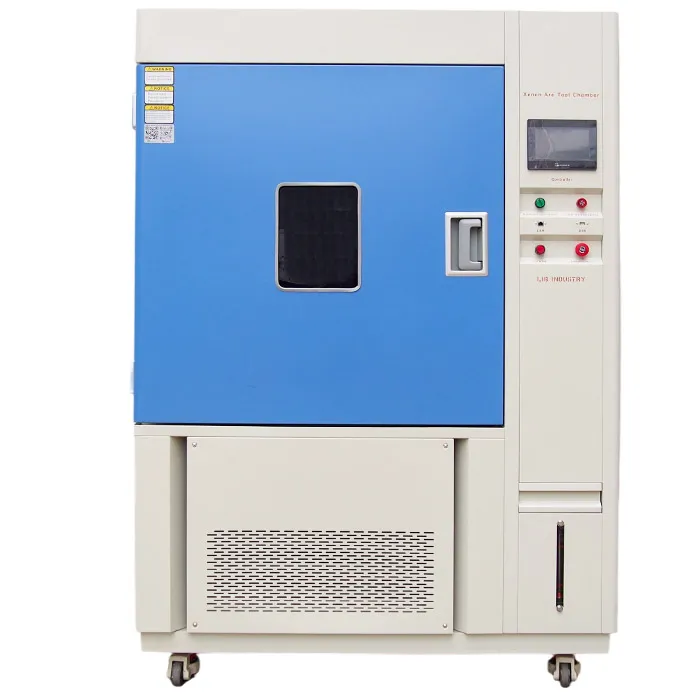

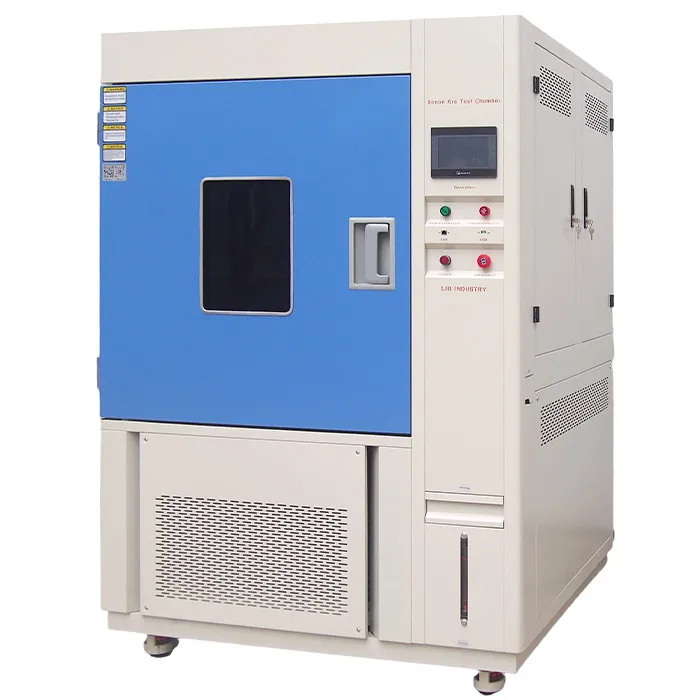

Xenon Weatherometer

Name: Xenon Weatherometer
Brand: Xi'an LIB Environmental Simulation Industry

The Xenon Weatherometer by LIB industry is a high-performance weathering platform built to reproduce the combined effects of solar radiation, thermal stress, humidity, and periodic moisture impact. Its xenon arc illumination system delivers a controlled spectrum of 280–800 nm with irradiance stability,Ambient ～ 100 ℃ temperature control and 50% ~ 98% RH humidity capability. This multi-factor simulation allows laboratories to quantify color shift, surface aging, coating durability, and polymer stability with traceable, standardized accuracy.

To accelerate material qualification, the system converts long-term outdoor exposure into highly repeatable laboratory cycles. Materials can undergo the equivalent of 1–2 years of natural sunlight within400–900 hours of xenon exposure, significantly shortening validation time for coatings, automotive plastics, outdoor textiles, packaging, and construction materials.

Model: XL-S-500,XL-S-750 and more customized models.

LIB Industry Xenon Weatherometer Video

Distinct Advantages of LIB Industry Xenon Weatherometer

1. Accelerated Realism Through Full-Spectrum Calibration

Unlike traditional UV-only testers, xenon weatherometer reproduces the entire solar spectrum with adjustable irradiance, synchronized with temperature and humidity cycles which closely mirrors real-world outdoor conditions.

2. High-Throughput Uniform Exposure

The rotating sample platform supports up to 42 specimens with high irradiance uniformity, allowing simultaneous testing of multiple materials or batches. This reduces testing time while maintaining consistent, repeatable results across every sample.

3. Eco-Efficient Water Management

Integrated closed-loop water recycling reduces water consumption by up to 50% and stabilizes lamp cooling, extending xenon lamp lifespan by 30%. Labs save resources while achieving more stable, repeatable testing, reducing operational cost per cycle.

4. Smart Data Integration & Protocol Flexibility

With programmable light, dark, and moisture sequences, real-time monitoring of BST, irradiance, and humidity, and data export, the system ensures test data is immediately audit-ready. Pre-defined and customizable cycles allow labs to meet ASTM, ISO, and AATCC standards without manual intervention.

Technical Specifications of Xenon Weatherometer

Model	XL-S-750
Internal Dimension (mm)	950950850 mm
Overall Dimension (mm)	140014001950 mm
Specimen Holder Size(mm)	95*200
Specimen Capacity	42pcs
Chamber Type	Rotating Holder
Irradiation Source	1 piece of 4500w water-cooled xenon arc lamp
Irradiance Range	35~150 W/㎡
Bandwidth Measurement	300nm~400nm (340nm or 420nm)
Chamber Temperature Range	Ambient ～ 100 ℃ ±2℃
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2℃
Humidity Range	50% ~ 98% RH
Humidity Deviation	± 5% RH
Water Spray Cycle	1~9999H59M (Adjustable)
Controller	Programmable color LCD touch screen controller
Water supply system	Automatic water supply, Water purification system
Radiometer	UV Radiometer, Tolerance: ±5%
Cooling System	Mechanical compression refrigeration system

Detailed Product Features of LIB Industry Xenon Weatherometer

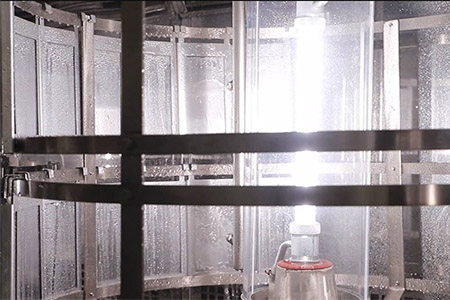

Xenon Arc Lamp – High-Power Full-Spectrum Simulation	Equipped with a 4500 W water-cooled xenon lamp, delivering a full solar spectrum from 280–800 nm Irradiance stability maintained within ±5% over long-duration tests (1,800–2,200 hours). Water-cooling extends lamp lifespan by 30%, reduces thermal drift, and supports continuous multi-day or multi-week testing.
Irradiance Meter & Black Panel – Precision Measurement	High-precision radiometer continuously monitors xenon output, automatically compensating for lamp aging. BPT ranging from 35℃ ~ 85℃ maintain ±0.5°C accuracy on sample surfaces, ensuring reliable thermal exposure.
Mirror-finished SUS304 Worksroom & Rotating Sample Holder	The mirror-polished SUS304 stainless steel interior enhances light reflection,its high corrosion resistance makes it durable under extreme temperatures, high humidity. 3 layers rotating holder ensures 360° exposure, accommodating up to 42 specimens.
Controller System – Intelligent, Customizable, and Audit-Ready	Advanced touchscreen interface and fully programmable light, dark, and moisture sequences.Real-time monitoring of irradiance, temperature, humidity, and water spray cycles. Supports remote monitoring, alarm notifications, and automatic calibration reminders, making daily operation simple and error-free.
Water Circulation & Spray System – Efficient and Environmentally Friendly	Programmable spray and condensation cycles simulate rainfall, dew, and high-humidity conditions to reproduce realistic outdoor aging. Optimized nozzle and flow design prevent sample oversaturation and ensure uniform moisture distribution across the nozzles.
