Splash Waterproof Test Chamber

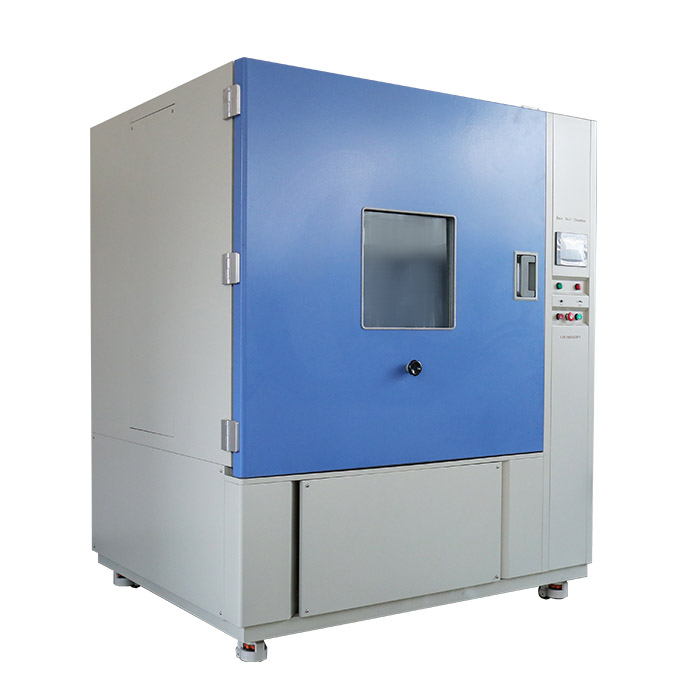

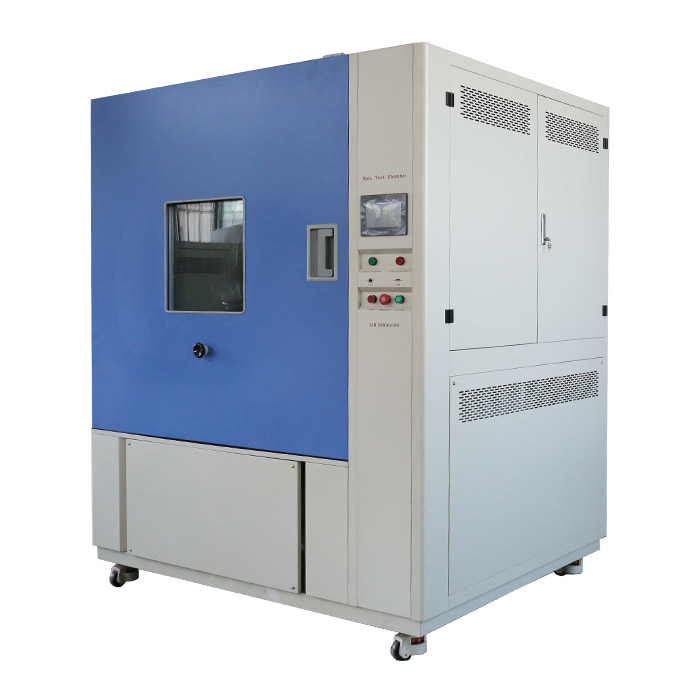

Name: Splash Waterproof Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The splash waterproof test chamber is used to test the water resistance of a product in the event of water splashing or water splashing. It is particularly used to assess whether a product meets the requirements of IPX3 and IPX4 in IEC 60529. IPX3: Simulate spraying water at an angle of ±60° from both vertical sides to test the product's water resistance under light rainfall or splashes. IPX4: It is required that the product can withstand water splashing from any direction, with higher test strength and coverage.

Model: R-800C, R-1200C

Standard: ISO 20653, IEC 60529, UL 50E, UL 1598, UL 153, UL1573, UL 60950-1, IPX3, IPX4

Features and Benefits of Splash Waterproof Test Chamber

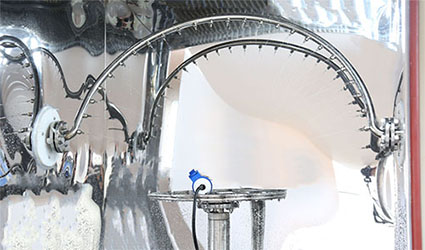

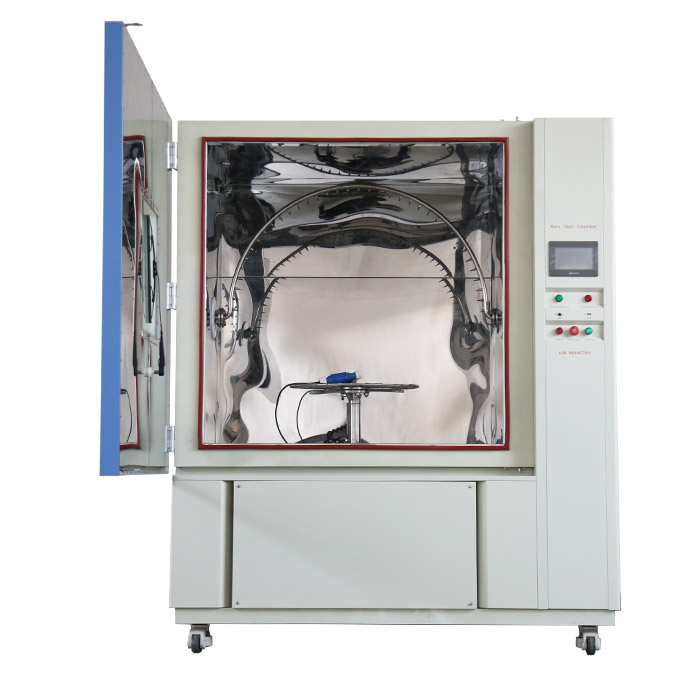

1. The multi-angle automatic swing pipe sprinkler system features swing pipes of different diameters (400mm / 600mm), and supports switching between 60° (IPX3) and 180° (IPX4) arc-shaped water spray angles.

2. Adjustable flow and pressure precise control system, equipped with high-precision flowmeters and pressure regulating valves, precisely controls the water outlet rate. Spray hole diameter: 0.4mm.

3. Functions such as water shortage protection, motor overload protection, and leakage power-off protection to ensure the safety of personnel and equipment.

4. Customizable cavity size to meet the requirements of different samples, suitable for testing various types of products such as mobile phones, lamps, automotive parts, and electrical control boxes.

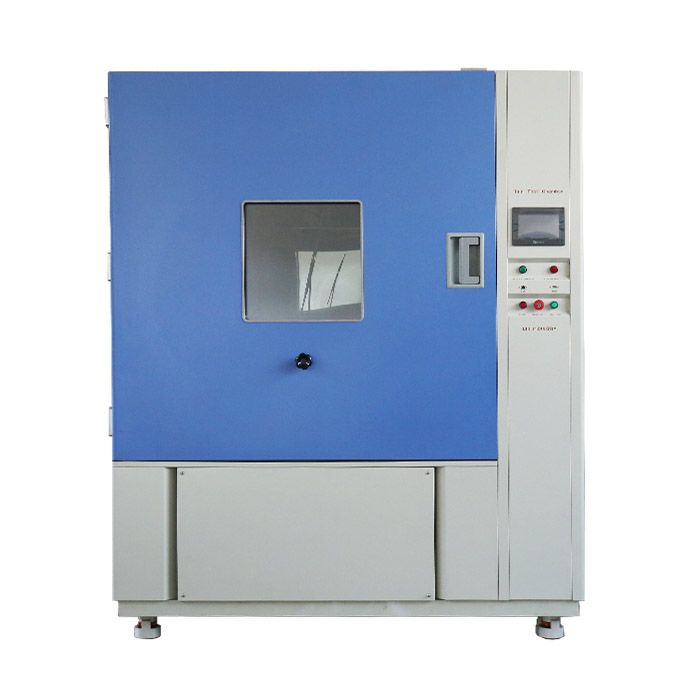

Specifications of Splash Waterproof Test Chamber

Model	R-800C	R-1200C
Internal Dimensions (mm)	900950950	130013501370
Overall Dimensions (mm)	118014201920	154018202200
Useful Volume (L)	810	2400
Oscillating Tube Radius	400mm	600mm
Spraying Hole Diameter	φ0.4mm
Hole Spacing	50 mm
Swing Angle of Oscillating Tube	0 ~ ±180° (Adjustable）
Turntable Rotation Speed	1r/min (Adjustable speed)
Water Pressure Control	Flow meter
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel

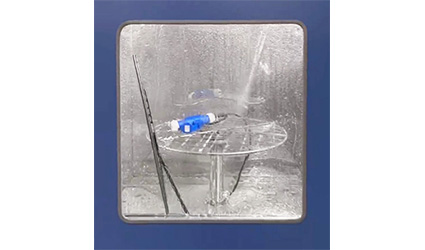

Observation Window	Double layer insulating glass with wiper

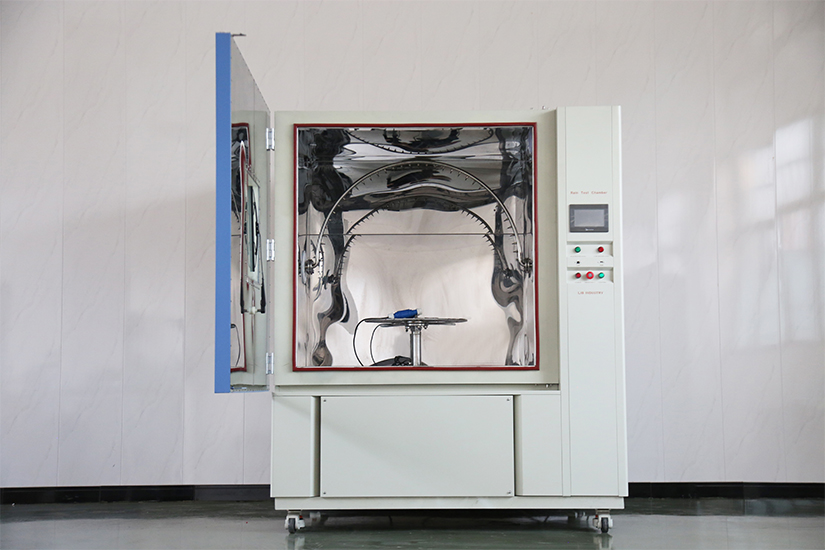

Details of Splash Waterproof Test Chamber

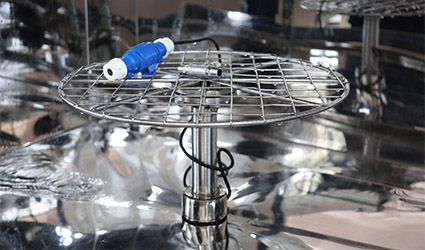

Workroom	Rotary Turntable
Made of SUS304 stainless steel, it can withstand long-term water pressure impact. There are sealing rings around the studio to prevent water leakage.	Automatically rotate the sample turntable to ensure that it is evenly sprayed from all angles. The turntable operates stably and its speed is adjustable.

Water Circulation System	Observation Window

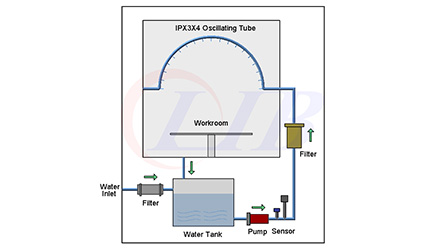

The closed-loop water circulation system recovers the water source through the built-in water tank and circulation pump (passing through the filtration system) for reuse. It reduces water consumption, lessens the burden of drainage treatment, and is suitable for long-term and multi-round continuous testing.	Large-sized tempered glass observation window, equipped with manual wipers and built-in waterproof LED lighting system. Even in a spray environment, the monitoring and recording of the test process can be carried out.

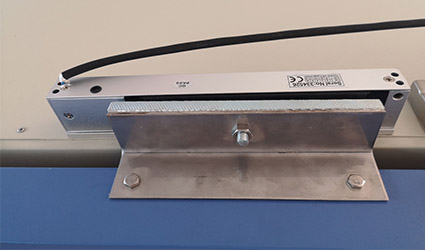

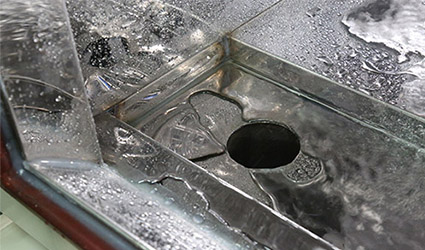

Water Drain Port	Electromagnetic Safety Lock
The bottom of the workroom is equipped with multiple return water ports and adopts an anti-clogging design to ensure that the residual water after spraying can be quickly discharged into the return water tank, avoiding the accumulation of water level and affecting the test results.	The electromagnetic lock safety interlock system automatically locks the test door when the test program starts or the spray is in progress to prevent accidental opening.
