Why IP6K9K Testing Is Critical for Modern VehiclesModern vehicles—especially electric and hybrid models—face harsh environments. Beyond rain, components are exposed to high-pressure washing, mud splash, and thermal shock from hot water around the chassis. Conventional IP65 or IP66 protection is often insufficient, as it cannot replicate high-pressure cleaning or road splash at speed.
IP6K9K testing addresses this gap, offering a higher level of protection validation. An IP6K9K test chamber allows manufacturers to simulate extreme water ingress conditions with precision and repeatability, ensuring sensors, connectors, and electronic modules remain fully functional.

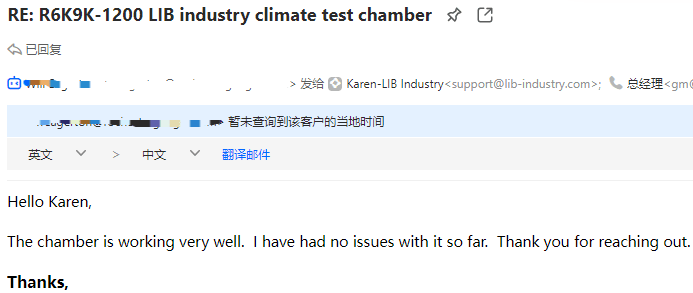

Customer Feedback: A U.S. electronics manufacturer shared:
"Hello Karen,
The chamber is working very well. I have had no issues with it so far. Thank you for reaching out."
They successfully tested electronic modules under both IPX6K road splash conditions and IPX9K high-temperature, high-pressure cleaning, confirming the chamber’s reliability in demanding real-world scenarios.
An IP6K9K test chamber is a specialized IP6K9K test machine designed to perform both IPX6K and IPX9K tests within a single system. It combines high-pressure water jets with high-temperature spray to simulate harsh automotive environments.
Unlike traditional waterproof testing equipment, this integrated system allows engineers to validate product durability under both mechanical and thermal water stress. It is widely used to test components such as sensors, connectors, battery enclosures, and electronic modules.
As a form of advanced IP6K9K high pressure equipment, the system delivers controlled pressure, temperature, and spray angles to ensure consistent and reliable test results.
The “K” rating originates from automotive-specific standards:
DIN 40050-9 introduced enhanced protection levels for road vehicles
ISO 20653 later adopted and standardized these requirements globally
In this context, “K” represents increased pressure, distinguishing automotive testing from general-purpose IP ratings.
Feature | IPX6 | IPX6K | IPX9K |
Water Pressure | ~1 bar | ~10 bar | 80–100 bar |
Flow Rate | 100 L/min | 75 L/min | 14–16 L/min |
Water Temperature | Ambient | Ambient | 80 ± 5°C |
IPX6K focuses on high-impact water jets, simulating strong external forces such as road splash. In contrast, IPX9K introduces high temperature and extreme pressure, creating combined mechanical and thermal stress.
This makes IPX9K one of the most demanding waterproof tests, far exceeding conventional IP ratings.
When vehicles travel at high speeds through wet conditions, water is forcefully projected onto components. This creates impact forces far greater than natural rainfall.
IPX6K testing replicates this scenario, ensuring that critical parts like sensors and connectors remain sealed under intense water exposure.
Modern vehicles frequently undergo high-pressure cleaning during maintenance. Water jets are applied at close range (typically 100–150 mm), often at elevated temperatures.
IPX9K testing simulates these conditions, verifying the durability of components such as battery packs, motors, and underbody systems.
Automotive manufacturers increasingly require compliance with ISO 20653 as part of their component qualification process.
Meeting IP6K9K requirements is often essential for suppliers aiming to enter or remain in the automotive supply chain.

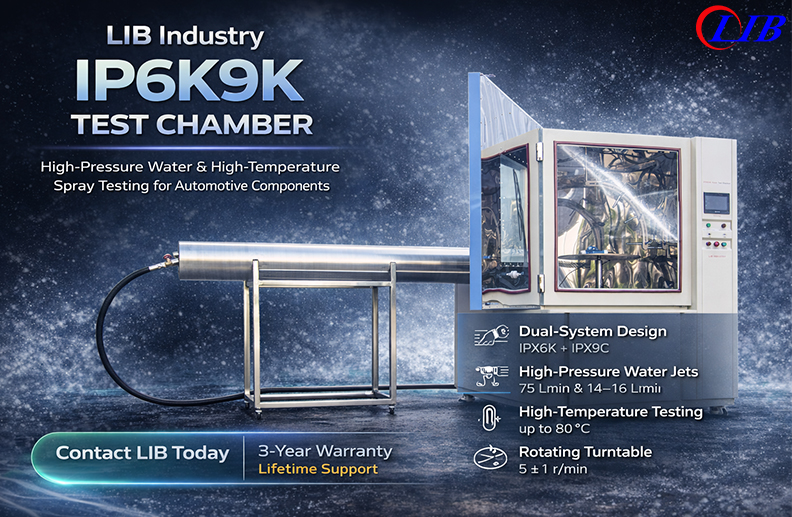

At LIB industry, our IP6K9K test chamber is engineered to provide a comprehensive solution for high-pressure water ingress testing. Combining cutting-edge technology with practical laboratory efficiency, this system is designed to meet the stringent requirements of automotive OEMs and Tier 1 suppliers.
 |  | |
Model | R6K9K-1200 | |
Interior Volume (L) | 1200 | |
Testing Platform Diameters | 600mm | |
Testing Platform Speed | 5±1 r.p.m | |
Turntable loads | 50kgs | |
Testing Platform Height | 200-400 mm (adjustable) | |
IPX6K
| Internal Diameter of Nozzle | 6.3mm |
Water Flow Rate | 75 L/min +/- 5% | |
Water pressure | 1000 Kpa | |
Distance from Water Spraying to Specimens | between 2.5 m and 3 m. | |
IPX9K
| Water Spray Angle | 0°, 30°, 60°, 90° |
Water Spray Temperature | Ambient ~ +88℃ (Adjustable) | |
Spray Nozzle | Four, 30 Seconds each position | |
Distance from Water Spraying to Specimens | 10~15cm | |
Water Pressure | 8000-10000 Kpa (Adjustable) | |
Water Flow Rate | 14L-16L/min | |
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |
Our IP6K9K chamber integrates two independent spray systems in a single unit, allowing seamless switching between IPX6K road splash simulations and IPX9K high-pressure, high-temperature cleaning tests. Engineers can perform both tests consecutively without manual reconfiguration, streamlining workflows and improving laboratory productivity.
LIB industry’s advanced flow control system delivers precise water volumes for each test mode:
IPX6K: 75 L/min for realistic road splash impact
IPX9K: 14–16 L/min at 80 ± 5 °C to simulate high-temperature cleaning
The chamber maintains stable water pressure and temperature throughout testing, ensuring consistent, repeatable results that comply with ISO 20653 and automotive standards.
Samples are mounted on a robust rotating turntable (5 ± 1 r/min), while multi-angle spray nozzles (0°, 30°, 60°, 90°) provide full surface coverage. This combination guarantees that all components—including connectors, sensors, and battery modules—receive uniform exposure under real-world conditions.
 |  |
By combining IPX6K and IPX9K testing into a single LIB chamber, laboratories can eliminate multiple devices, reduce sample handling, and minimize human error. Automated test sequences allow engineers to start a full testing cycle with a single command, improving throughput while ensuring high repeatability.
When choosing a LIB IP6K9K test chamber, engineers should consider:
Nozzle Accuracy: Standardized fan-shaped (IPX6K) and rotating jet (IPX9K) nozzles guarantee compliance with automotive specifications.
Turntable Functionality: Adjustable rotation speed and optional powered slip ring interfaces allow live electrical testing during exposure.
Material Durability: High-quality 304 or 316 stainless steel construction ensures corrosion resistance and longevity under continuous high-pressure, high-temperature operation.
Customization Capability: LIB industry offers bespoke chamber sizes, walk-in configurations, and shell-less setups to accommodate oversized or irregular products.
By selecting LIB industry’s IP6K9K equipment, laboratories gain confidence in both testing reliability and operational efficiency.
Beyond the IP6K9K test chamber, LIB industry offers a full suite of environmental testing solutions, helping manufacturers simulate real-world conditions from rain and high-pressure water to sand and dust exposure.
IP Rain Testing: Comprehensive solutions for dripping, spraying, and high-pressure water exposure across multiple IP levels, ensuring automotive and industrial components maintain integrity under extreme wet conditions.
MIL-STD 810 Dust & Sand Testing: Accurate simulation of blowing dust and sand environments, widely used for automotive, aerospace, and defense applications.
Customization is a core strength of LIB industry. Customers can request:
Walk-in chambers for testing large assemblies or full systems
Shell-less, open-structure chambers for oversized or irregular components
Turnkey IP rain and dust laboratories, integrating multiple chambers into a single, streamlined workflow
With these options, LIB industry enables laboratories to optimize testing efficiency, reduce sample handling errors, and simulate even the harshest environments—providing confidence that products will perform reliably in the field.
Contact LIB industry today to request a technical datasheet or schedule a live demonstration of our IP6K9K, IP rain, and dust testing solutions.
