Stability Chamber

Name: Stability Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB stability test chamber is mainly a constant temperature and humidity stability test chamber for storage and testing.They can come in many sizes from small, bench top reach-in units to large walk-in rooms.Pharmaceutical stability test chambers are used for drug products and shelf life research.

Temperature range from -70 ° C to +150 ° C, can accurately control temperature fluctuations, fluctuations of ±0.5 ° C. The humidity is 20%-98% RH (relative humidity), and the humidity deviation is about ±2.5%.

Model: TH100A, TH225A, TH500A, TH800A, TH1000A

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-812D,SAE J575

LIB Industry Stability Chamber Video

Stability Chamber Features and Benefits

1. The constant temperature test chamber is mainly used for drug stability testing, drug storage, etc.

2. The environmentally controlled chamber has various models to choose from, small, medium and large.

3. The air circulation system of the stability test chamber provides good air circulation, achieving good temperature and humidity uniformity.

4. The chamber is equipped with mobile and detachable casters, which make it possible for customers to move the chamber conveniently.

Stability Chamber Specifications

Model	TH-100	TH-225	TH-500	TH-800	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Temperature Range	+5℃ to +70 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Humidity Range	30% ~ 90% RH
Humidity Deviation	± 5% RH
Cooling system	Mechanical compression refrigeration system
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	over-temperature protection; over-current protection; Refrigerant high-pressure protection; Earth leakage protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	2 shelves

Configuration of Stability Chamber

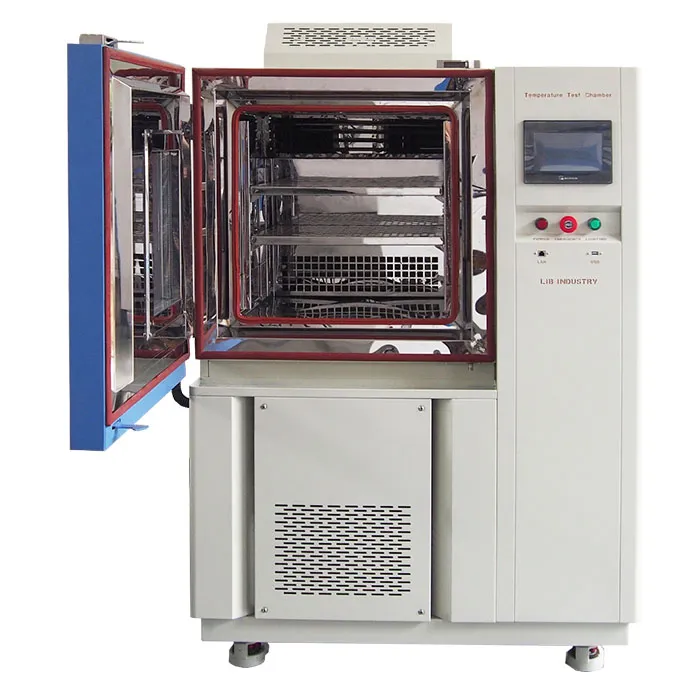

① Workroom	SUS304 high quality stainless steel plate, mirror material, acid resistant, corrosion resistant and easy to clean. a large transparent observation window and adopts high temperature tempered glass. The upper and lower position of the sample holder can be adjusted as required.
② Air circulation system	Low noise long axis fan motor and high and low temperature resistant stainless steel multi-wing impeller, so that the temperature and humidity inside the chamber is uniform and stable.
③ Heating system	It is composed of heating wire to provide heat for the chamber to achieve the set temperature conditions, and it is cooperated with the refrigeration system to achieve temperature control.
④ Cooling system	Composed of compressor, evaporator, condenser, expansion valve, capillary, etc., two sets of original imported refrigeration systems can automatically switch work to ensure long-term continuous operation of equipment.
⑤ Humidity system	Including humidifier, water tank, water pump, etc., can produce water vapor to increase the humidity in the chamber, to meet the test needs of different humidity environments.
⑥ Control system	According to the set value, the operation of refrigeration, heating, humidification and other systems is accurately controlled to achieve stable control of temperature and humidity, and it also has over-temperature, low-temperature alarm and temperature limit alarm system.
