Xenon Arc Chamber for Automotive Embedded Systems — UV Aging for ECUs, Digital Clusters, and In-Vehicle Displays

Dec 04 2025

Table of Content [Hide]

Why Automotive Electronics Need Real Sunlight Simulation

Modern vehicles are increasingly digital, with ECUs, clusters, and large displays integrated throughout the cabin. These systems are constantly exposed to sunlight, windshield reflections, and fluctuating cabin temperatures. UV radiation combined with humidity and condensation accelerates degradation in electronics and optics.

Xenon_Arc_Chamber_for_Automotive_Embedded_Systems_—_UV_Aging_for_ECUs,_Digital_Clusters,_and_In-Vehicle_Displa_(8).jpg

Common failure modes include OLED brightness decay, TFT color shifts, touch panel coating wear, ECU housing embrittlement, and potting compound failure. With electrification and digital dashboards expanding, reliable accelerated aging tests are critical.

The Science Behind Xenon UV Testing

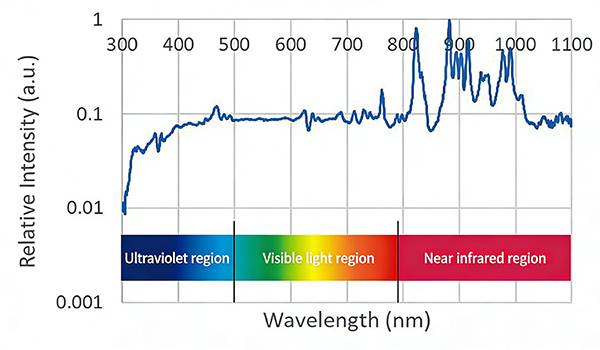

Xenon arc testing accurately reproduces the solar UV-Visible spectrum (300–400 nm), delivering realistic photochemical reactions that UV-LEDs or fluorescent lamps cannot match. Key features include:

· Controlled temperature & humidity cycles (50–98% RH)

· Condensation cycles to simulate dew formation

· Spray cycles mimicking rain and thermal shocks

Xenon ensures reliable lifetime predictions for ECUs, clusters, and optical displays, safeguarding performance and durability.

Target Products & Critical Risks

Small ECUs — Compact but Vulnerable

Even small ECUs face housing yellowing, connector aging, and internal thermal stress. Accelerated UV testing ensures long-term functional stability.

Digital Instrument Clusters — Color & Polarizer Stability

Clusters can suffer TFT yellowing, color shifts, and polarizer deterioration. Xenon testing validates optical integrity and maintains visual fidelity under prolonged sunlight exposure.

Center Displays, HUDs, & Touch Panels — Preserving Optical Excellence

Large displays, AR HUDs, and touch panels risk ghosting, hydrophobic coating loss, and polarizer damage. Accelerated UV aging ensures photonics quality is preserved throughout the product lifecycle.

The Xenon Light Fastness Test Chamber validates complete assemblies, not just materials, ensuring full-system reliability for automotive applications.

ISO 4892 Compliance — Method A & Method B Simplified

ISO 4892 defines international protocols for UV aging of plastics and automotive electronics.

Xenon_Arc_Chamber_for_Automotive_Embedded_Systems_—_UV_Aging_for_ECUs,_Digital_Clusters,_and_In-Vehicle_Displa_(7).jpg

Method A: Simulates solar daylight using broadband 300–400 nm or narrowband 340 nm filters, with 60 W/m² irradiance, spray cycles, black panel temperature at 65°C, and RH 50±10%.

Method B: Simulates windshield glass filtering with narrowband 420 nm irradiance, focusing on interior-exposed surfaces.

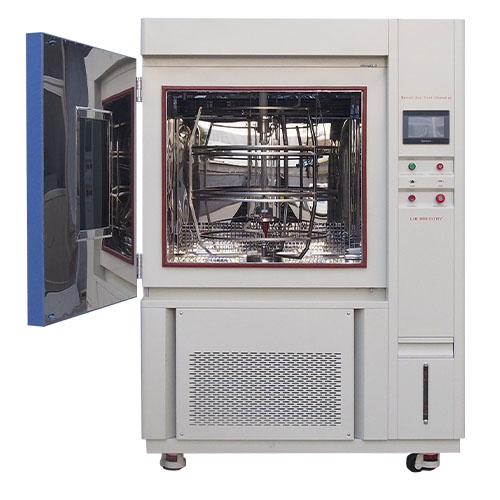

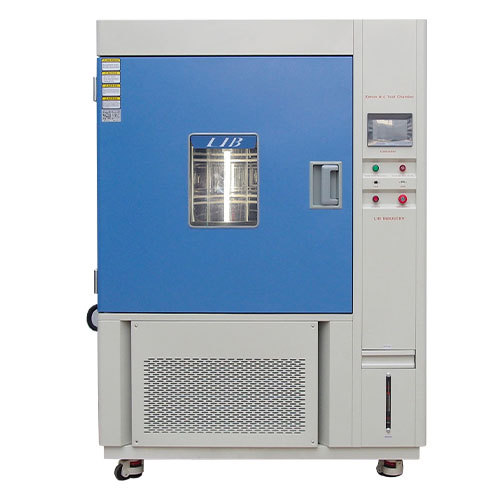

XL-S-750 xenon arc chamber supports adjustable irradiance from 35–150 W/m², enabling both Method A & B profiles and flexible acceleration for OEM and Tier 1 validation.

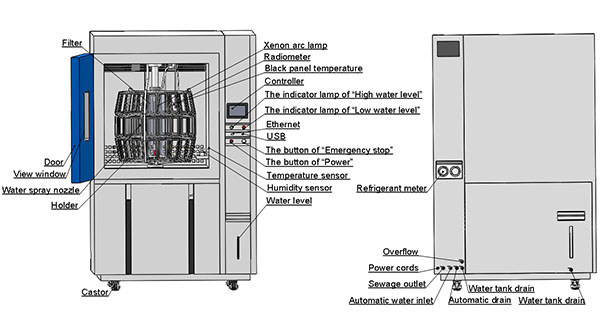

Xenon Arc Chamber Performance — Precision Meets Throughput

Engineered for demanding automotive UV aging tests:

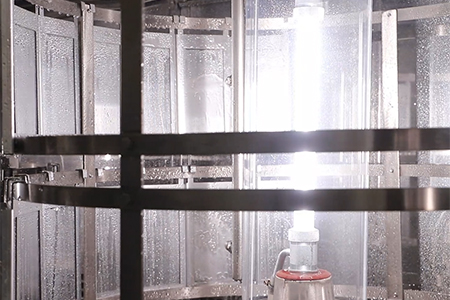

· 4500 W water-cooled xenon arc lamp for long-term stability

· Irradiance 35–150 W/m², covering ISO 4892 spectrum

· Black panel 35–85°C / Chamber ambient–100°C

· Humidity 50–98% ±5% RH, with programmable condensation cycles

· Up to 42 automotive samples per cycle

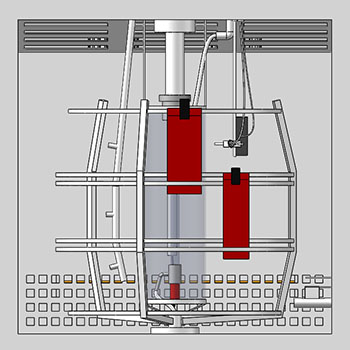

· Rotating holder for uniform UV exposure

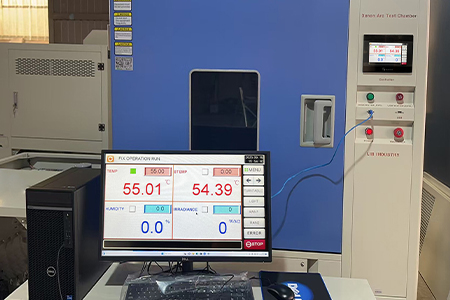

· Fully programmable LCD controller with data logging

Designed for 2000–3000 hour automotive validation cycles, providing repeatable, reliable aging results for ECUs, clusters, and displays.

Driving Value for Tier 1 Suppliers & Labs

UV aging with Xenon Test Chamber helps automotive suppliers:

· Reduce field failures and warranty returns

· Predict product lifetimes of 5–8 years or more

· Support PPAP, OEM validation, and pre-production material screening

· Ensure photonics quality for HUDs and ADAS optical sensors

Faster, reliable testing leads to safer vehicles and stronger customer confidence.

Engineering Support & Tailored Customization of Xenon Testing Solution

LIB Industry offers:

· Custom fixtures for PCB-style ECUs

· HUD angle simulation for optical validation

· High-precision radiometer (±5%) for accurate irradiance

· Automatic water purification system for lamp longevity

· 3-year warranty, lifetime service, fast remote support, and rapid delivery

Every XL-S-750 setup is optimized for your product type, test duration, and regulatory requirements.

Get Started Today — Fast, Reliable, and Fully Supported

➡ Send your ECU, digital cluster, or display test requirement to LIB Industry and receive a free ISO 4892-2 test profile design. Benefit from:

· 1~3 Hours Fast response and technical consultation

· 7~15 Working Days Quick delivery and installation

· 3-year warranty and lifetime service

· Confidence that your products will withstand sunlight, humidity, and condensation

Ensure your automotive electronics meet the highest durability and reliability standards, without delay,contact LIB industry today inquiry@libtestchamber.com .
