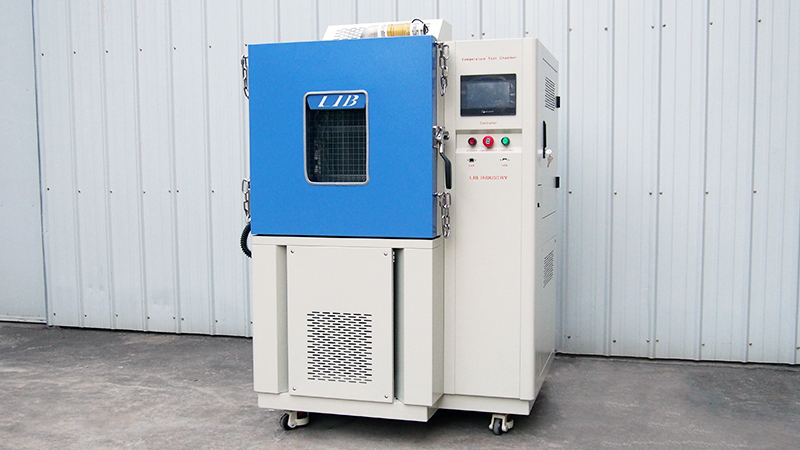

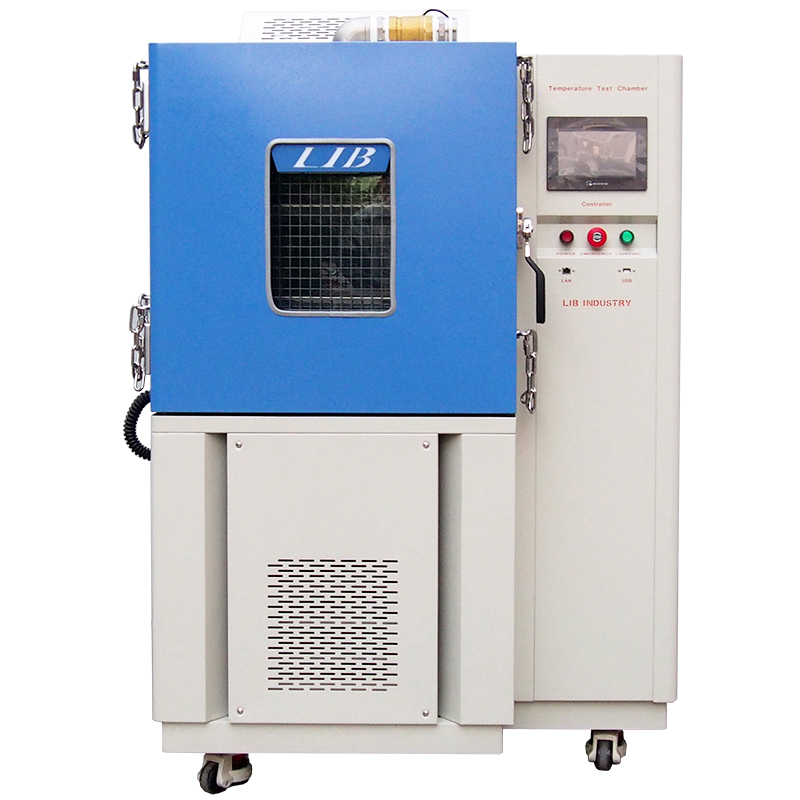

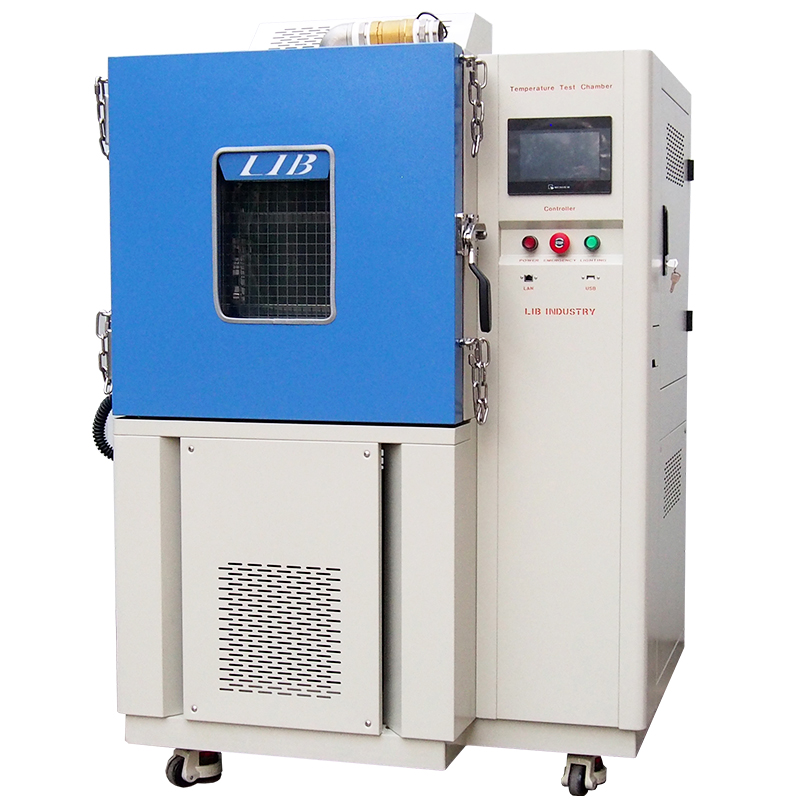

Explosion Proof Test Chamber

Name: Explosion Proof Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

The explosion proof test chamber is a temperature test chamber that integrates explosion-proof design and rapid temperature change function, applicable to high-safety-level temperature cycling tests and thermal stability evaluations of flammable and explosive items.The explosion proof test chamber is equipped with explosion-proof electrical components, explosion-proof observation window, pressure relief devices, flammable gas leakage detection and automatic exhaust.

Temperature range: -20℃,-40℃,-70°C to +150°C (customizable),temperature change rate: 5°C/min (heating/cooling).

Model: T-100, T-225, T-500, T-800, T-1000

Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D

Explosion Proof Test Chamber Features and Benefits

1. Explosion-proof electrical system, explosion-proof observation window and pressure relief valve, suitable for lithium battery testing. It is also built-in with a flammable gas leakage detection system to prevent potential hazards.

2. The temperature variation rate can reach up to 5°C/min (or faster, customizable), enabling rapid temperature cycling, shortening the testing cycle, and enhancing R&D efficiency

3. Wide temperature range: -20℃，-40℃，70°C to +150°C (Multiple temperature options available, customizable range).Temperature field uniformity (fluctuation ≤ ±0.5°C, uniformity ≤ ±2.0°C)

4. Multiple safety protections such as over-temperature, overload, leakage and fire, and has an emergency power-off device to ensure the safety of the test personnel and samples.

Specifications of Explosion Proof Test Chamber

Model	T-100	T-225	T-500	T-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5 ℃ / min
Heating Rate	5 ℃ / min
Cooling system	Mechanical compression refrigeration system,French TECUMSEH compressor,environmentally friendly refrigerant
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Automatic water supply, Water purification system
Safety Device	Over-temperature protection; Over-current protection; Refrigerant high-pressure protection; Earth leakage protection

Details of Explosion Proof Test Chamber

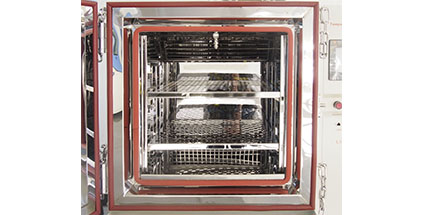

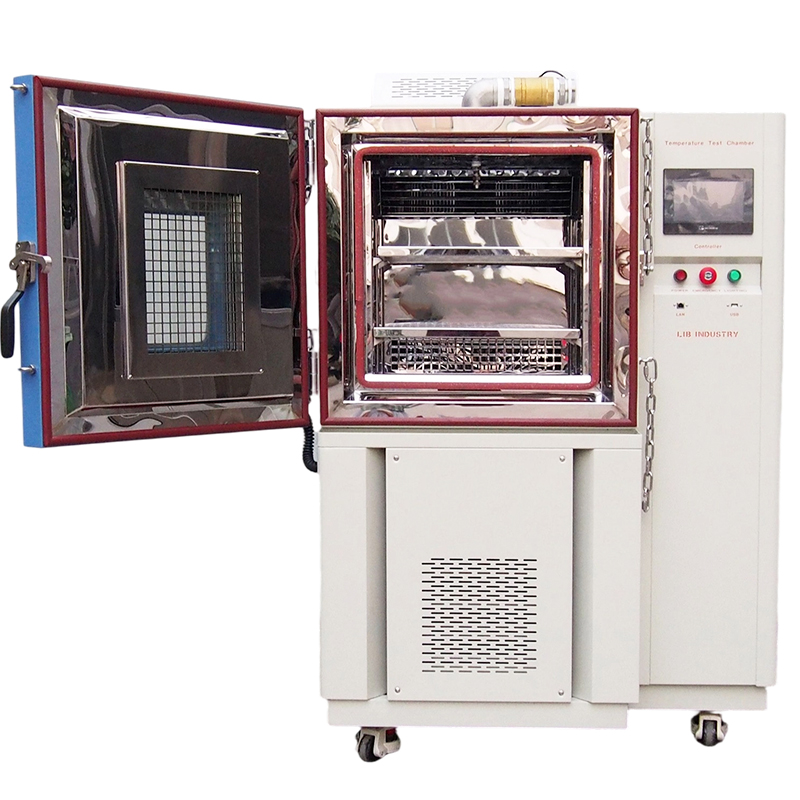

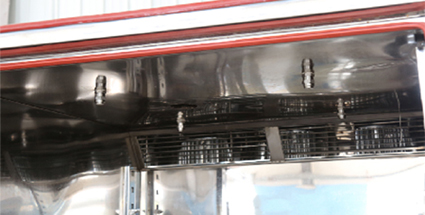

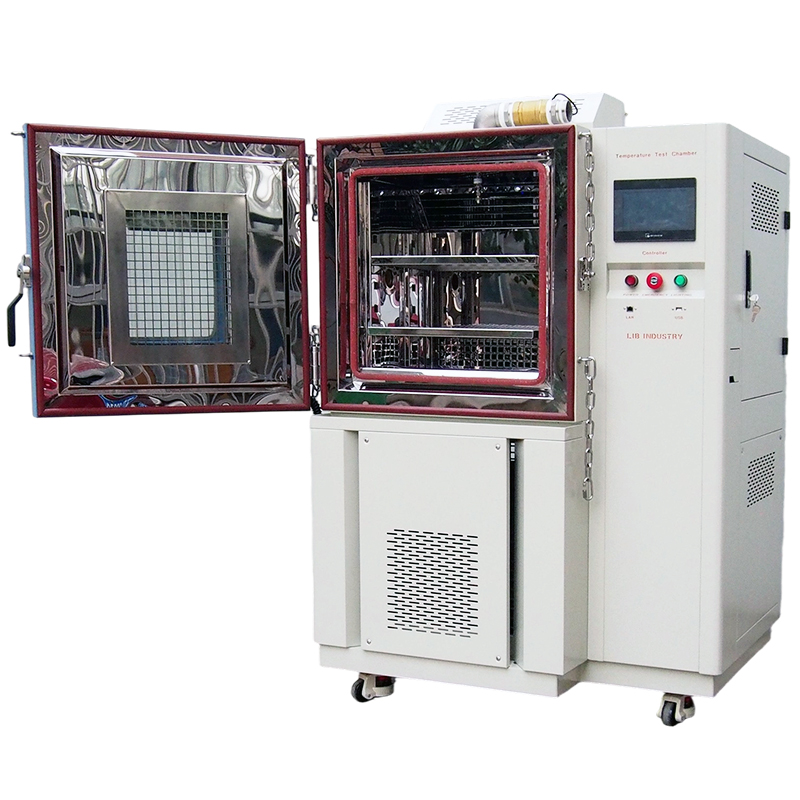

Workroom	Explosion-proof door
The workroom is made of SUS304 mirror-finish stainless steel, which is corrosion-resistant and easy to clean. It is suitable for test samples such as batteries that are prone to chemical reactions. The workroom volume range is 100L / 225L / 500L / 800L / 1000L/ customizable.	Equipped with an explosion-proof observation window (double-layer tempered glass + explosion-proof film), and the door lock is equipped with a mechanical chain to prevent abnormal opening during the test. Built-in pressure relief device.

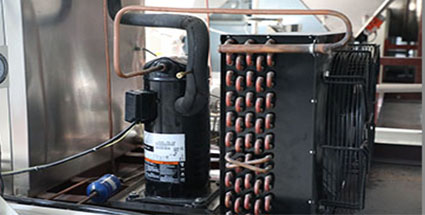

Refrigeration unit	Water spray and sprinkler

Two-stage cascade refrigeration system, using environmentally friendly refrigerants, suitable for extremely low temperatures, with a temperature variation rate of ≥5°C/min (stable cooling and high efficiency)	Fire extinguishing and cooling during battery thermal runaway, spray water tank is set at the bottom of the equipment and is equipped with a water shortage alarm and water level display.

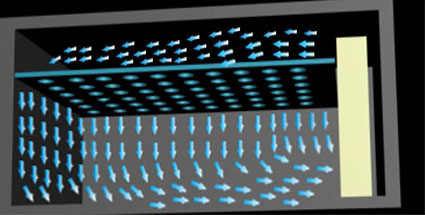

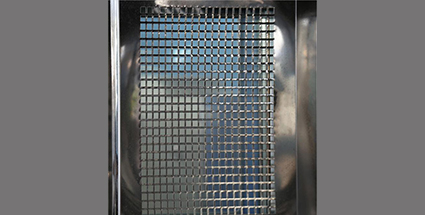

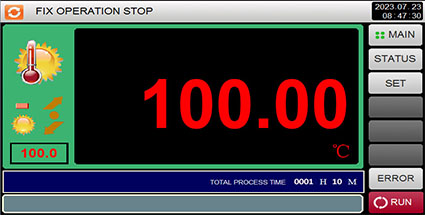

Multi-functional touch control system	Air circulation system
High-definition touch screen, PLC control logic, multiple languages available Supports data export (USB/Ethernet), remote monitoring, historical curve viewing, program programming and multi-segment control.	The high-efficiency circulating fan and the optimized air guiding structure achieve forced air circulation, ensuring that the temperature field uniformity is ≤ ±2.0°C, and maintaining stability and reliability even during rapid temperature changes.
