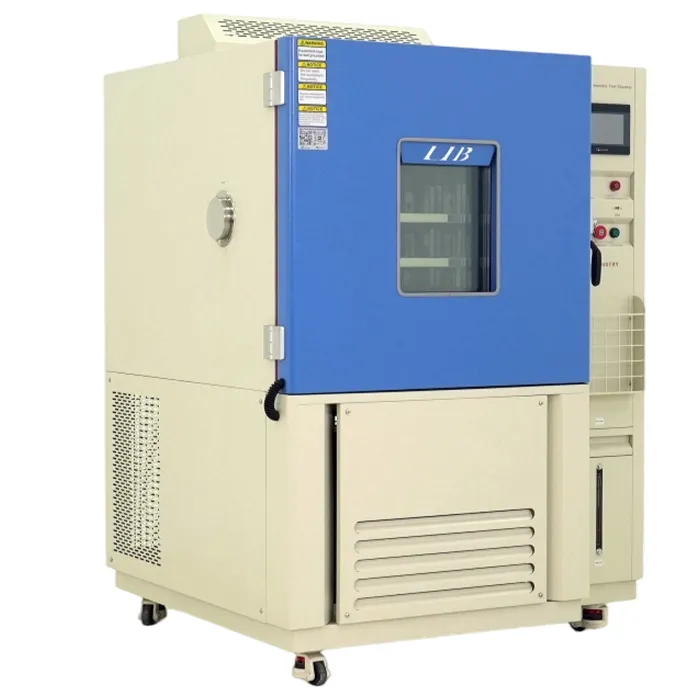

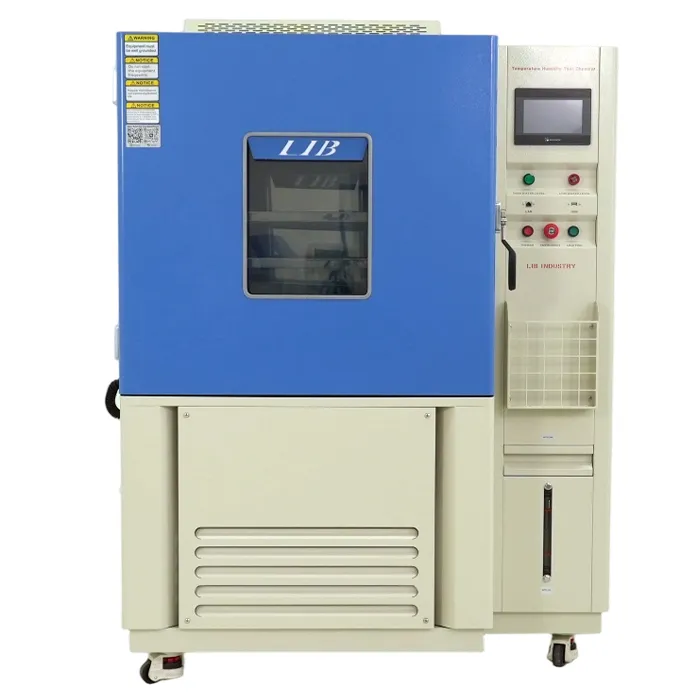

Temperature Humidity Controlled Environmental Condition Unit

Name: Temperature Humidity Controlled Environmental Condition Unit
Brand: Xi'an LIB Environmental Simulation Industry

Modern laboratories require more than simple temperature and humidity control. They need stable environmental conditions, reliable data management, uniform climate distribution, and long-term operational efficiency.

The Temperature Humidity Controlled Environmental Condition Unit from LIB is designed to address these practical requirements. Built on a proven chamber structure and enhanced with advanced control technology, it provides precise environmental regulation for research, product development, quality assurance, and long-duration conditioning applications.

By combining intelligent control algorithms, optimized airflow circulation, and user-friendly operation, the unit delivers dependable environmental performance while simplifying daily laboratory workflows.

✅ 100L-1000L standard models available ✅ -70°C~+150°C ✅ 20-98%RH

Core Technical Advantages of Temperature Humidity Controlled Environmental Condition Unit

1. Precision Environmental Control: Dynamic PID Algorithm + Uniform Airflow System

Compared with conventional single-sensor control systems, this unit integrates a multi-point high-precision sensor array for real-time environmental monitoring. Combined with a self-developed dynamic PID control algorithm, the system automatically detects changes in thermal load and adjusts refrigeration output and heating power accordingly.

This control strategy keeps temperature and humidity fluctuations within a tightly controlled range.

2. Simplified Digital Operation: High-Resolution Touchscreen + Remote Monitoring Capability

The system is equipped with an industrial-grade capacitive touchscreen designed for environmental testing workflows. The interface provides smooth curve visualization and intuitive parameter setup for operators.

An integrated communication module enables LAN connectivity, allowing real-time monitoring of equipment status and historical temperature and humidity data via PC or mobile devices.

3. Structural Design and User-Centered Engineering

Anti-Condensation Observation Window:
A wide-angle triple-layer anti-condensation explosion-proof glass window ensures clear visibility of internal conditions even under high temperature and humidity environments, allowing stable observation without interrupting testing.

Corrosion-Resistant Chamber Interior:
The chamber is built using SUS304 or optional SUS316L stainless steel. Combined with seamless argon-arc welding, it provides strong corrosion resistance, easy cleaning, and long service life under continuous operation.

Anti-Fingerprint Exterior Housing:
The exterior uses a matte anti-fingerprint coating, improving scratch resistance and maintaining a clean, professional appearance over long-term use.


High-Performance Test Workroom	Flexible Test Port Design

Refrigeration System	Intelligent Control & Remote Monitoring

Specifications of Temperature Humidity Controlled Environmental Condition Unit

Parameter	Technical Specification
Chamber Volume (L)	100L / 150L / 225L / 500L / 800L / 1000L
Temperature Range	Type A: -20°C ~ +150°C Type B: -40°C ~ +150°C Type C: -70°C ~ +150°C
Humidity Range	20% ~ 98% RH (customizable for low temperature & low humidity models)
Temperature Stability / Uniformity	Stability: ≤ ±0.5°C Uniformity: ≤ ±2.0°C
Humidity Deviation	Deviation: ±2.5%RH
Temperature Change Rate	Heating: average 3.0°C/min Cooling: average 1.0°C/min
Refrigeration System	French Tecumseh + eco-friendly refrigerant (R404A / R23)
Communication Interface & Protocol	RS485 / Ethernet interface, standard Modbus RTU/TCP protocol
Safety Protection System	Over-temperature, Compressor Protection, Fan Protection, Leakage Protection

Get a Reliable Environmental Testing Solution

Why Choose LIB Industry?

✔ 3-Year Warranty for Long-Term Reliability

✔ Lifetime Technical Support and Maintenance Service

✔ 8/5 English-Speaking After-Sales Assistance

✔ Installation, Training, and Remote Troubleshooting Support

✔ Fast Delivery and Global Service Network

Whether you need a standard environmental chamber or a fully customized testing system, LIB industry is ready to support your project from consultation to lifetime service.

Contact LIB industry today to discuss your testing requirements and receive a customized solution proposal.

LIB industry offers customized chamber sizes, temperature ranges, communication options, and control configurations to meet specific testing and environmental control requirements.
