How a Salt Sprayer Helps Automotive Components Resist Corrosion

Feb 27 2026

Table of Content [Hide]

Why Automotive Corrosion Testing Can’t Wait

Every day, automotive components—from suspension arms to bolts and connectors—face harsh environments. Rain, road salts, and coastal humidity can silently attack metal and coatings, leading to rust, failure, and costly recalls. Manufacturers can’t afford guesswork: verifying corrosion resistance before products leave the factory is essential.

Advanced salt sprayers provide accelerated, controlled testing that reveals long-term vulnerabilities in days, not years. LIB industry’s solutions combine precision, flexibility, and reliability, helping automotive engineers validate materials and coatings efficiently, reduce risk, and maintain product quality.

How Salt Spray Accelerates Corrosion Insights

A salt spray chamber creates a reproducible, aggressive environment that simulates years of exposure in a matter of days. By dispersing a fine mist of salt solution, manufacturers can quickly evaluate protective coatings, plating, and base materials.

Testing methods include:

Neutral Salt Spray (NSS): Uses 5% NaCl at neutral pH (6.5–7.2). Ideal for general corrosion evaluation.
Acetic Acid Salt Spray (AASS): Acidified to pH 3.1–3.3 to accelerate corrosion, testing durability of protective coatings.
Copper-Accelerated Acetic Acid Salt Spray (CASS): Adds copper chloride for highly aggressive conditions, simulating extreme environments.

LIB industry salt sprayers maintain precise spray pressure (83 kPa) and deposition rates (1–2 mL/80 cm²·h), ensuring compliance with ASTM B117. PT‑100 Class A sensors track temperature with 0.001 °C accuracy, guaranteeing repeatable, valid results.

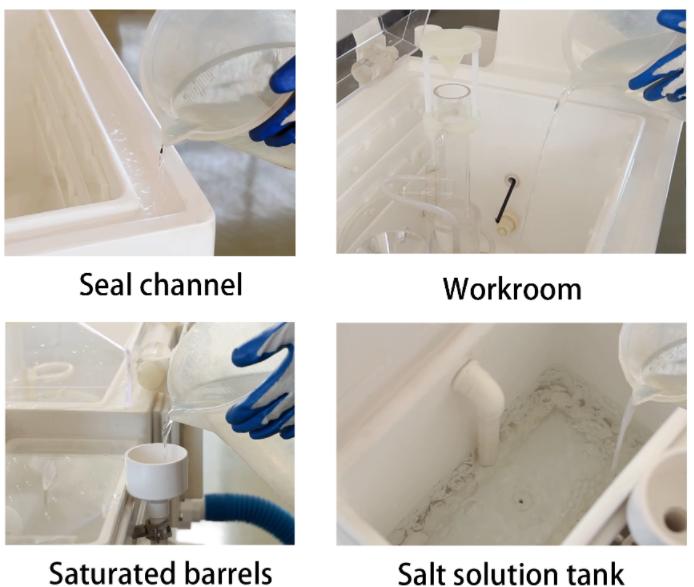

LIB industry also provides free industrial-grade sodium chloride with each salt spray chamber to ensure accurate solution preparation and immediate test readiness.

Test Type	Environment	Typical Use	Duration
NSS	Neutral salt fog	General coatings, metals	24–96h
AASS	Acidified salt fog	Vehicle exterior panels	24–72h
CASS	Acid + copper	Marine and high-corrosion areas	48–168h

In addition, salt brine sprayers replicate real-world road salt exposure, ensuring that test results are realistic and actionable.

From Chassis to Connectors: How Salt Sprayers Protect Every Part

Automotive manufacturers rely on salt spray corrosion test chambers to safeguard all critical components.

Chassis and Suspension Parts: These parts face constant exposure to wet roads and debris. By simulating years of road salt contact, LIB systems validate coatings and galvanization, preventing early rusting. Customizable sample racks accommodate multiple components, allowing efficient batch testing.
Fasteners, Bolts, and Connectors: Even small components can compromise safety if they corrode. Using precise spray control, deposition monitoring, and adjustable holders, manufacturers can verify coating integrity across hundreds of parts simultaneously.
Exterior Panels and Coatings: Paint and metal finishes must endure salt-laden environments without failure. Adjustable V-groove and round-rod sample holders enable optimal placement and angle, ensuring uniform exposure and reliable results.

Why this matters:

Batch testing reduces labor and accelerates QA processes.
Flexible sample holders allow testing from small fasteners to full-size components.
Real-time monitoring ensures consistent deposition and prevents invalid tests, saving time and resources.

Pro Tip: Viewing windows allow continuous observation without opening the chamber, preventing temperature fluctuations and maintaining accurate spray deposition.

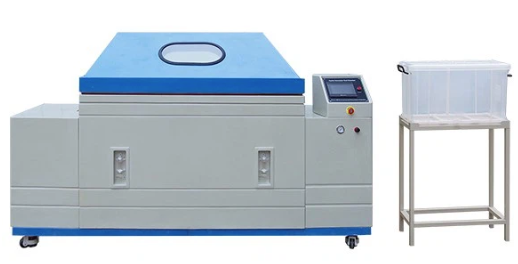

Why Choose LIB Industry Salt Sprayer

LIB industry salt sprayers are engineered to deliver reliable, repeatable, and customizable testing for every automotive component. Key advantages are grouped into five clear modules:


Model	S-150	S-250	S-750	S-010
Interior Volume (L)	110	320	410	780
Temperature Range	Ambient ～ +60 ℃
Humidity Range	95% ~ 98% RH
Salt Fog Deposition	1～2ml / 80cm2 · h
Spray Type	Continuous / Periodic
Salt Fog Collected	Fog collector and fog measure cylinder
Air Preheating	Saturated air barrel
Spraying System	Atomizer tower and Spray nozzles
Controller	PID controller
Safety Device	Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection
Material	Glass fiber reinforced plastics
Standard Configuration	6 round bars and 5 V-shaped grooves

1. Precision & Control

Ensures consistent and reliable testing across all components.

Stable spray pressure: 83 kPa
Deposition rate: 1–2 mL/80 cm²·h
Temperature accuracy: 0.001 °C
Real-time monitoring of spray and deposition volumes guarantees compliance with ASTM B117

2. Durable Construction

Built to withstand corrosive testing environments for years:

The material is glass fiber reinforced plastics.Strong corrosion resistance, one-time forming, reinforced design, long service life and high temperature resistance.
Inverted-V lid prevent condensation drip
Quartz nozzles and industrial-grade salt resist corrosion and high temperatures
Viewing windows allow observation without disrupting test conditions


3. Ease of Use & Automation

Designed to simplify testing while minimizing errors:

Automatic water replenishment and nozzle cleaning
Touchscreen controller stores 120 programs × 100 steps
Data logging and export via USB/Ethernet for audit-ready reports
Alarm notifications for deviations in temperature, pressure, or salt concentration

4. Flexibility & Customization

Adapts to diverse automotive components:

Adjustable V-groove and round-rod sample holders
Custom insert holders for non-standard shapes or large assemblies
Optional advanced testing chambers:

Chamber Type	Features & Applications	Product Image	Test Standard
Cyclic Salt Spray Corrosion Chamber (CCT)	Alternating wet/dry cycles simulate real-world corrosion patterns		ASTM B117; ISO9227 (NSS, NASS, CASS );
Salt Fog Chamber	Continuous exposure for accelerated corrosion testing		ASTM B117; ISO9227; IEC60068-2-52;
SO2 Corrosion Chamber	Simulates industrial/urban atmospheres with sulfur dioxide		ASTM B117; ISO9227; IEC60068-2-52; ASTM G85 (A4);

5. Mobility & Safety

Ensures secure operation and flexibility in labs:

Pneumatic open/close lid for safe and consistent handling
Height-adjustable casters with 420 kg capacity each
Stable placement on uneven floors

This combination of precision, automation, and flexibility ensures that every component—from the smallest fastener to full-size chassis assemblies—is tested rigorously and reliably.

Start Your Salt Spray Testing With LIB Industry, 3-Year Warranty

Salt spray testing is more than a requirement—it’s a critical investment in durability and brand reputation. LIB industry salt sprayers provide precise, repeatable, and customizable testing solutions that help manufacturers:

Detect coating or material weaknesses before full-scale production
Reduce warranty claims, rework, and potential recalls
Accelerate QA cycles without compromising accuracy

Peace of Mind with LIB Industry:

3-Year Warranty: Comprehensive coverage on all critical components
Lifetime Technical Support: Expert guidance whenever you need it
Replacement Parts & Consumables: Easy access to quartz nozzles, sample holders, sensors, and other essential components for uninterrupted testing

Take the Next Step:
Discover how LIB industry salt sprayers can safeguard your automotive components, improve production reliability, and optimize testing efficiency. Contact us today for a customized solution, free consultation, or a detailed quote!
