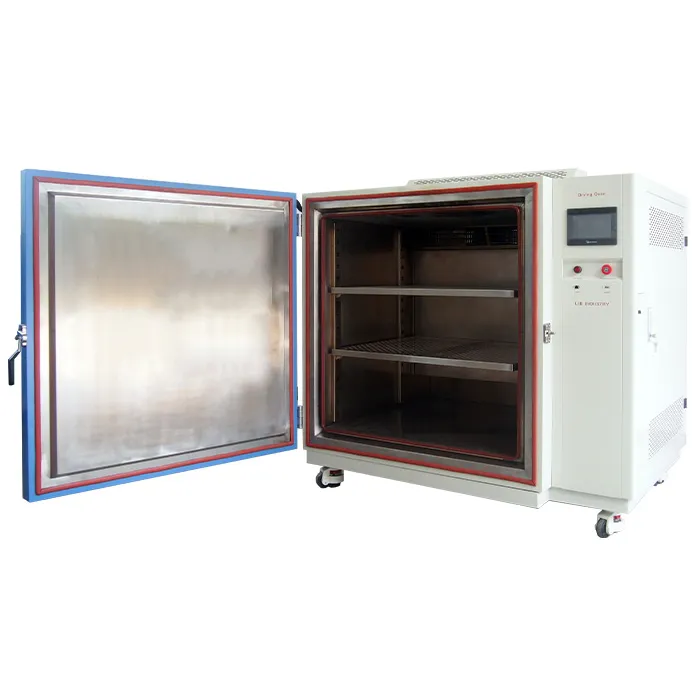

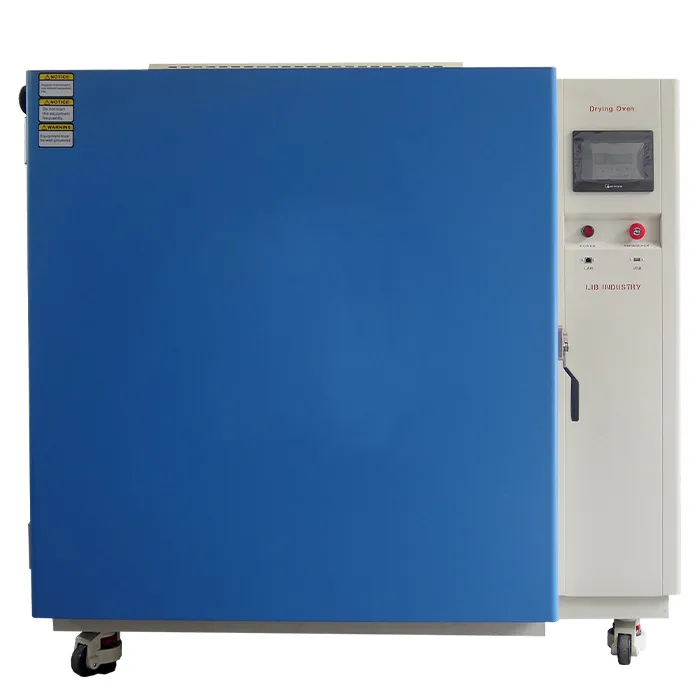

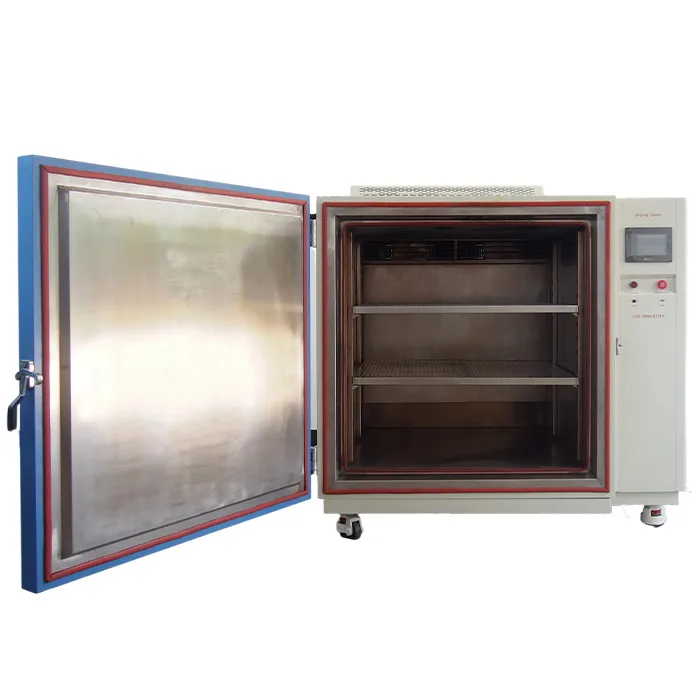

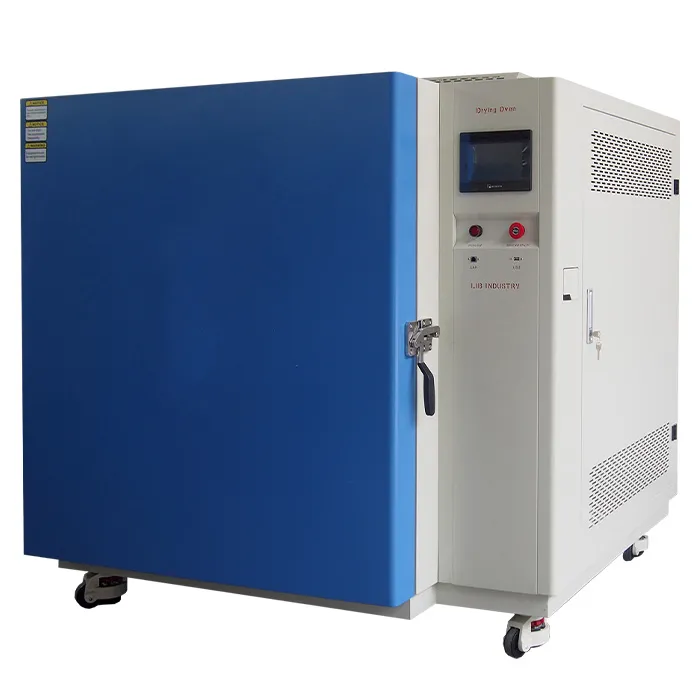

Industrial Forced Air Thermal Degradation Ageing Oven

Name: Industrial Forced Air Thermal Degradation Ageing Oven
Brand: Xi'an LIB Environmental Simulation Industry

Controlled Thermal Exposure for Reliable Material Ageing and Degradation Studies

The Industrial Forced Air Thermal Degradation Ageing Oven from LIB industry provides controlled elevated-temperature exposure for evaluating thermal ageing, degradation, heat resistance, and material stability. Continuous forced-air circulation distributes heated air throughout the chamber, supporting consistent exposure during long-duration testing.

Available in 100–1000 L chamber volumes, the oven supports standard temperatures up to +250°C, with higher-temperature configurations available. Temperature performance can reach ±0.5°C fluctuation and ±2.0°C deviation, with a heating rate of approximately 6°C/min. It is suitable for plastics, polymers, rubber, electrical insulation, coatings, automotive materials, and electronic components.

Model:O-100 | O-225 | O-500 | O-800 | O-1000 and more custom models

Aplicable standards: IEC 60216 | IEC 60068-2-2 | ASTM D3045 | ASTM D573 | ISO 188 | ISO 2578 | MIL-STD-810H 501.7

How Does Forced Air Improve Thermal Ageing Performance?

Consistent Air Distribution

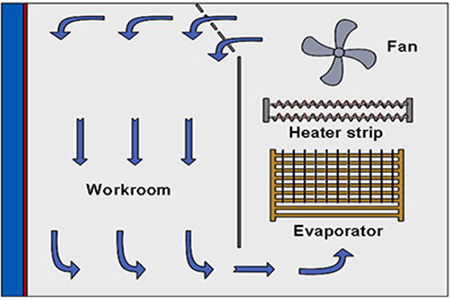

The forced-air circulation system continuously moves heated air through the chamber, improving heat transfer and helping reduce temperature gradients. This provides more consistent thermal exposure for specimens during ageing and degradation tests.

Stable Temperature Control

A programmable controller maintains the selected test temperature during extended operation. The oven can achieve ±0.5°C temperature fluctuation and ±2.0°C temperature deviation, supporting repeatable thermal exposure.

Flexible Temperature Configurations

Different materials require different ageing conditions. LIB industry offers standard configurations from Ambient to +250°C, with options for +400°C, +900°C, and up to +1200°C for specialized high-temperature applications. Chamber volume, insulation, heating capacity, and airflow can be configured according to the selected temperature range.

Applications Across Materials and Components

The thermal ageing oven can be used wherever elevated-temperature exposure is required to understand material performance over time.

Industry / Material	Typical Application
Plastics & Polymers	Thermal ageing and degradation evaluation
Rubber & Elastomers	Heat resistance and ageing studies
Automotive Components	Elevated-temperature exposure of components and materials
Electrical Insulation	Thermal stability and heat resistance evaluation
Coatings	Thermal stability and degradation studies
Electronic Components	High-temperature conditioning
Composite Materials	Thermal exposure and property evaluation
Industrial Materials	Accelerated thermal ageing research

The test conditions, exposure time, specimen arrangement, and temperature can be configured according to the intended evaluation method.

Specifications of Industrial Forced Air Thermal Degradation Ageing Oven

Model	O-100	O-225	O-500	O-800	O-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	750880850	8009501000	110011001300	110014501400	130014001400
Interior Volume	100L	225L	500L	800L	1000L
Temperature Range	A: Ambient ～+250 ℃ B: Ambient ～+400 ℃ C: Ambient ～+900 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Heating Rate	6 ℃ / min
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature Protection; Over-current Protection; Phase Sequence Protection; Earth leakage Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam （Refractory brick）
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	2 shelves

Key Components for Reliable Thermal Ageing

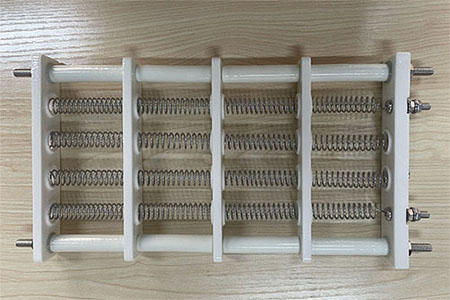

Forced-Air Circulation The circulation system continuously moves heated air through the working chamber, supporting a more consistent thermal environment around the specimens.	Heating System Nichrome heating elements provide the thermal energy required to reach and maintain the selected test temperature. The heating capacity and layout can be adapted to different temperature requirements and chamber volumes.

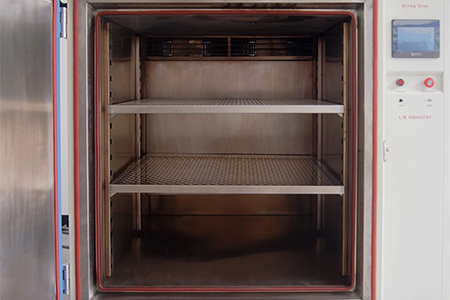

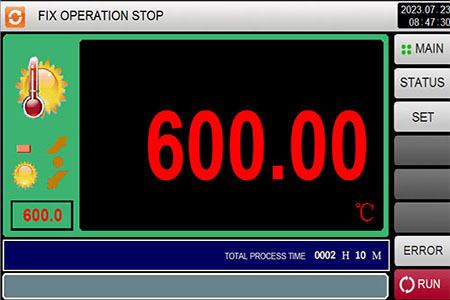

Stainless Steel Workroom The working chamber uses SUS304 stainless steel, providing a durable and easy-to-clean surface for repeated thermal exposure applications.	Programmable Controller The color LCD touchscreen controller enables users to set temperature conditions, control test duration, store programs, and monitor operation. Ethernet communication is available for system integration and remote data access.

Thermal Ageing Oven Solutions From LIB Industry

Not every thermal ageing application requires the same configuration. With 16+ years of experience in environmental simulation equipment, LIB industry can customize the oven according to temperature range, chamber volume, airflow, specimen size, loading method, and test requirements.

Available options include customized chamber dimensions, shelves and fixtures, ventilation, observation windows, controllers, insulation, and safety systems.

Every oven is backed by a 3-year warranty, lifetime technical support, 24/7 English-speaking service, and professional commissioning support.

Tell us your target temperature, specimen dimensions, and ageing requirements to receive a customized solution.
