Solar Climatic Test Chamber

Name: Solar Climatic Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

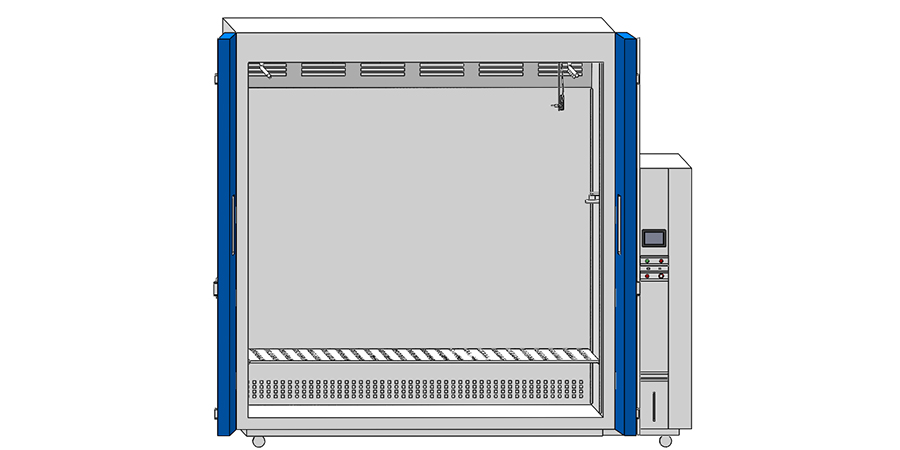

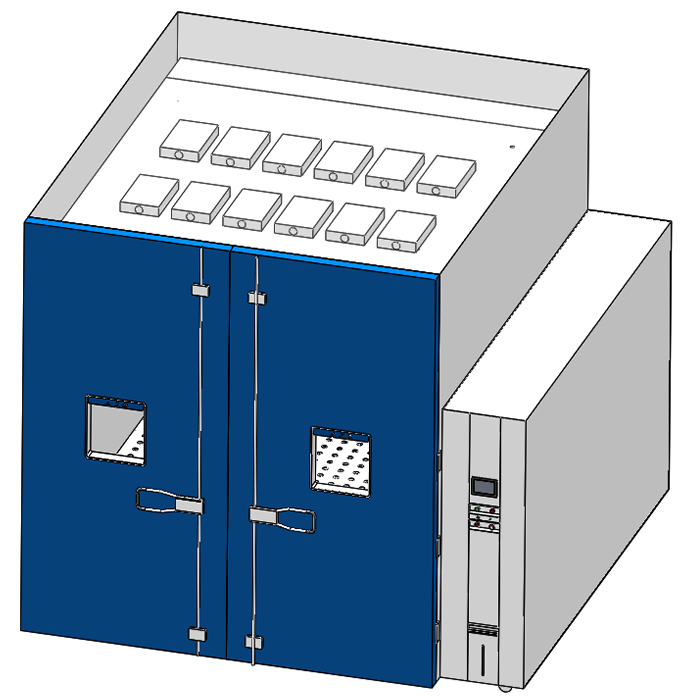

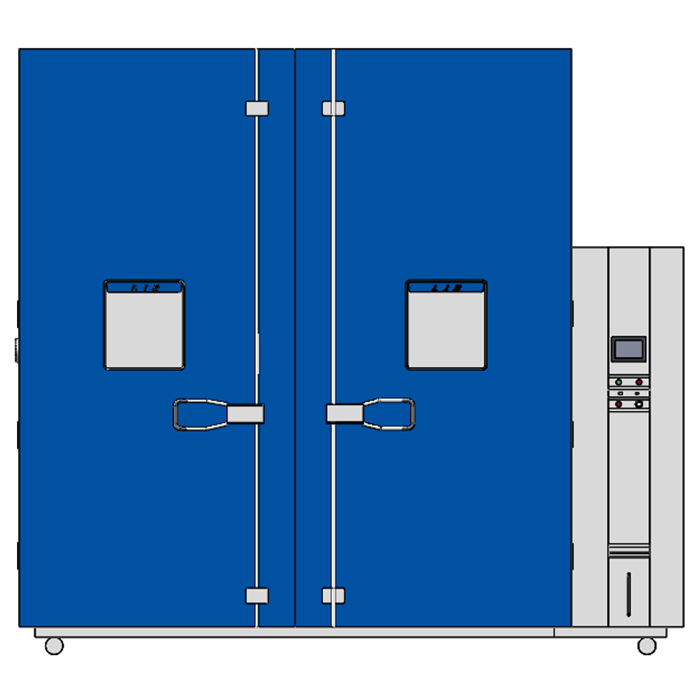

The solar climatic test chamber is a walk-in xenon lamp test chamber designed specifically for light aging and weathering tests of complete vehicles or large structural components. The equipment adopts high-intensity xenon lamps as the light source, simulating full-spectrum solar radiation (300~400nm), with adjustable irradiation intensity to meet different accelerated aging requirements. The test chamber is equipped with an accurate temperature and humidity control system, with a temperature range from RT to +100℃. It is suitable for simulating various climate environments, such as high temperature and high humidity, cold and hot cycles, and dry exposure.

Standard: IEC 60068-2-5, IEC 60068-2-27,ASTM G26,ISO 105, ISO 4892-2, ASTM G155, ASTM G151, ASTM G155,ISO 105-B02 (EN) (DIN), ISO 105-B04 (EN) (DIN).

Solar Climatic Test Chamber Features and Benefits

1. The xenon lamp system truly simulates the full spectrum of natural sunlight (290nm to 100nm), ensuring that the aging response of materials and the entire vehicle in the ultraviolet, visible light, near-infrared is highly restored.

2. Wide-range temperature and humidity control can simulate extreme climates such as high temperature and high humidity, low temperature and dryness, and day-night cycles, making it suitable for multi-climate zone adaptability tests.

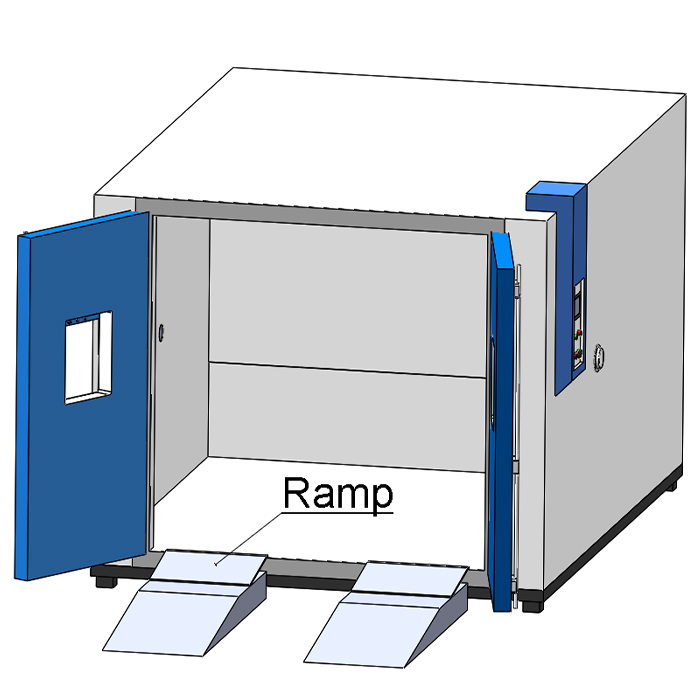

3. Support direct cabin testing of the entire vehicle or large structural components to ensure that the aging verification under real working conditions at the vehicle level is more scientific and reliable.

4. Light intensity, temperature, humidity and wind speed can be independently controlled and programmed in a linked manner to achieve real-time data recording and remote management.

Specifications of Solar Climatic Test Chamber

Name	Solar Climatic Test Chamber
Chamber Type	Flat shelf
Irradiation Source	water-cooled xenon arc lamp
Irradiance Range	35~150 W/㎡
Bandwidth Measurement	300nm~400nm (340nm or 420nm)
Chamber Temperature Range	Ambient ～ 100 ℃ ±2℃（customize）
Black Panel Temperature	BPT 35 ～ 85 ℃ ±2℃
Humidity Range	50% ~ 98% RH（customize）
Humidity Deviation	± 5% RH
Water Spray Cycle	1~9999H59M (Adjustable)

Details of Solar Climatic Test Chamber


Workroom	Air circulation system
Made of SUS304 with high temperature resistance and high reflectivity, it optimizes the uniformity of light, avoids local overexposure, is corrosion-resistant, easy to clean, and is equipped with temperature and humidity probes.	The high-power fan and air duct structure ensure the uniform distribution of air and heat inside the chamber, effectively avoiding temperature difference dead zones, and support adjustable wind speed.

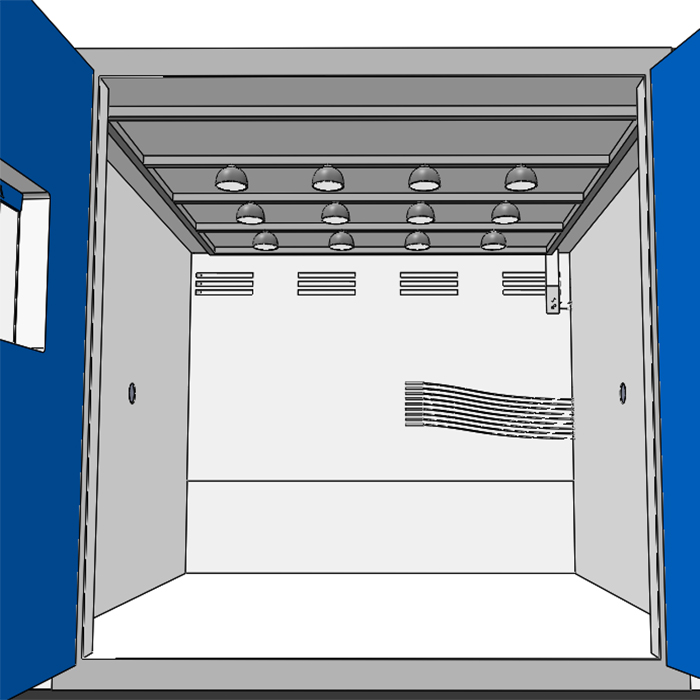

Modular xenon lamp light source system	Intelligent controller
Long-arc xenon lamp, with full-spectrum output simulating natural sunlight, water-cooled heat dissipation to ensure long-term stable operation, and integrated with automatic light intensity compensation function. The lamp groups are evenly arranged to ensure uniform irradiation distribution.	PLC+ touch screen system, real-time curve display, multi-segment program programming, with remote control and data export functions, convenient operation.

If you also have any special testing requirements, please feel free to contact LIB. We will get in touch with you soon. LIB values every requirement of yours.
