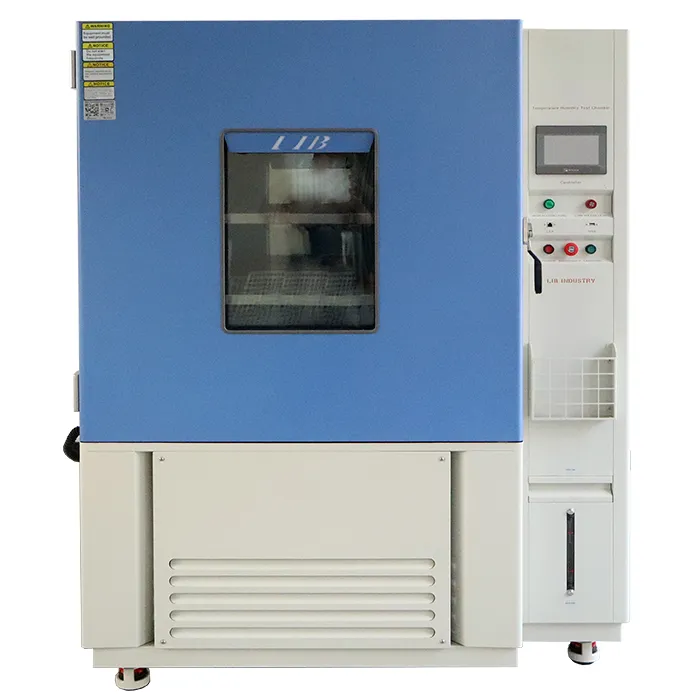

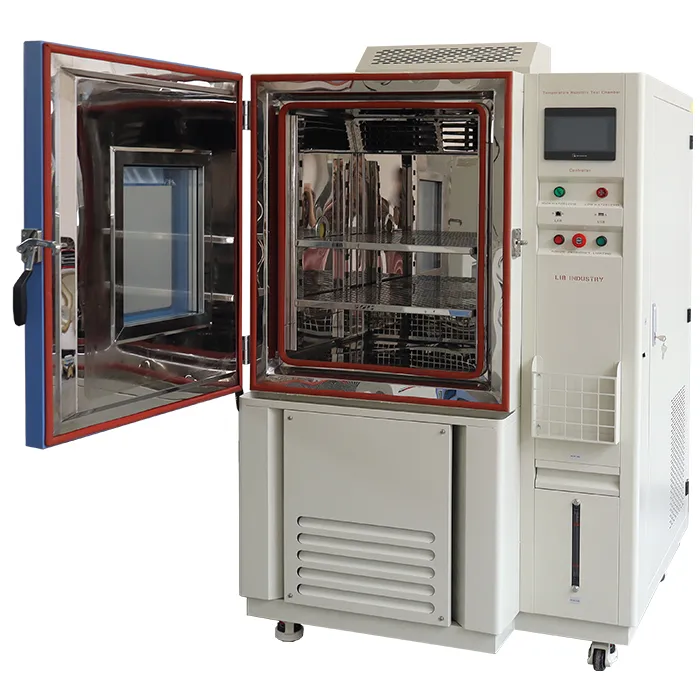

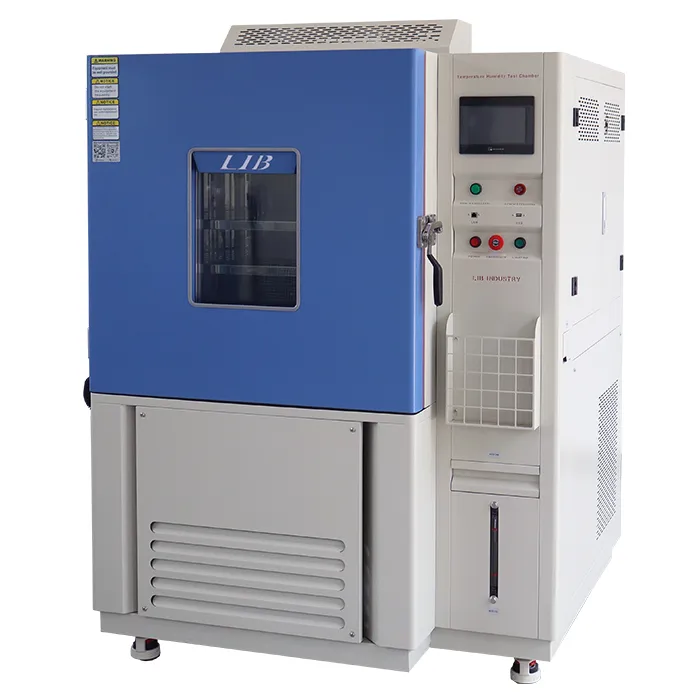

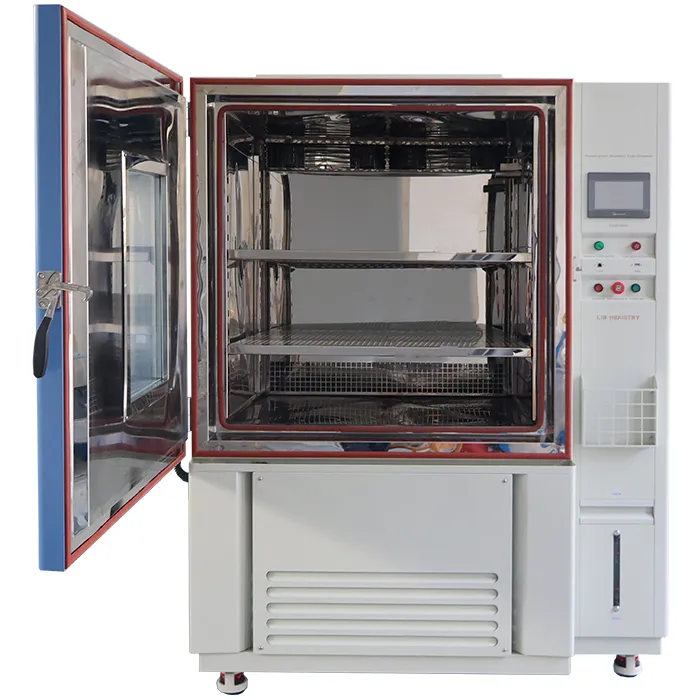

Heat Cold Humidity Climate Chamber

Name: Heat Cold Humidity Climate Chamber
Brand: Xi'an LIB Environmental Simulation Industry

Simulate heat, cold, and humidity conditions in one controlled test environment.

LIB Industry heat cold humidity climate chambers are designed for environmental testing of electronic components, automotive parts, materials, batteries, and other products. The chamber combines programmable temperature and humidity control with heating, cooling, and humidity regulation to reproduce different climate conditions in a repeatable laboratory environment.

With 100L, 225L, 500L, and 1000L chamber volumes, the series can accommodate different sample sizes and testing requirements.

Temperature Range: –20°C / –40°C / –70°C to +150°C
Humidity Range: 20–98%RH
Temperature Fluctuation: ±0.5°C
Humidity Deviation: ±2.5%RH

Optional Models : TH-100A, TH-225A, TH-800A, TH-1000A and more customizable models.

Applicable Testing Standards: IEC 60068-2-1 | IEC 60068-2-2 | IEC 60068-2-30 | IEC 60068-2-78| MIL-STD-810

Heat Cold Humidity Climate Chamber | Temperature & Humidity Testing

Heat, Cold and Humidity in One Climate Test

The heat cold humidity climate chambers can experience high temperatures, low temperatures, moisture, and changing environmental conditions during transportation, storage, and operation. A heat cold humidity climate chamber allows these conditions to be reproduced under controlled laboratory conditions.

Heat Testing: Expose products to elevated temperatures to evaluate heat resistance, aging, and performance stability.
Cold Testing: Simulate low-temperature environments for cold resistance, storage, and low-temperature reliability testing.
Humidity Testing: Control relative humidity from 20% to 98%RH for moisture resistance and environmental conditioning.
Climate Cycling: Combine temperature and humidity conditions into programmable test profiles for repeated environmental exposure.

Key Hardware & Operating Features of Heat Cold Humidity Climate Chamber

Designed for reliable daily testing, ease of use, and accurate environmental control.

Reliable Refrigeration: Equipped with Tecumseh compressors and eco-friendly refrigerants for stable, long-term cooling performance.
Intuitive Touchscreen Controller: Programmable color LCD touch screen with multi-language support, ethernet/USB interfaces, and automated data export.
Heated Observation Window: Multi-layer glass window with built-in heater prevents condensation during low-temperature cycles.
Built-in Water Purification: Automatic water supply and filtration system ensures continuous operation during humidity testing.
Cable Testing Port: Includes a standard silicone-plugged cable port (Ø 50mm / Ø 100mm) for powering and monitoring samples under test.

Heat Cold Humidity Climate Chamber Specifications

Model	TH-100	TH-225	TH-500	TH-1000
Internal Dimension (mm)	400500500	500600750	700800900	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	150015402140
Interior Volume	100L	225L	500L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	20% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	1 ℃ / min
Heating Rate	3 ℃ / min
Controller	Programmable color LCD touch screen controller,PC Link, LAN interface for remote control
Cooling system	Mechanical compression refrigeration system，environmentally friendly refrigerant,compliant with the GWP standards requirements
Water supply system	Automatic water supply; Water purification system
Safety device	Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection;
Interior Material	SUS304 stainless steel
Exterior Material	Steel Plate with protective coating

Frequently Asked Questions on Heat Cold Humidity Climate Chamber

Q1: How do I choose the right climate chamber size for my samples?

To ensure proper air circulation and accurate test results, your test samples should not occupy more than 1/3 of the internal chamber volume. Leave at least 5–10 cm of space between samples and the interior walls.

Q2: Does the heat cold humidity chamber require pure water for humidity testing?

Yes. To prevent scale buildup and protect the humidifier, purified or distilled water is recommended. The built-in water purification system helps condition the water supply for continuous operation.

Q3: Can I test powered/active electronic samples inside the chamber?

Yes. The chamber comes with a standard cable port (Ø 50mm or Ø 100mm) with a heat-resistant silicone plug, allowing you to connect power cables and signal wires to active test samples.

Q4: Can the temperature and humidity test profiles be customized?

Yes. The programmable LCD touchscreen controller allows you to set multi-segment temperature and humidity profiles, step ramps, hold times, and cyclic testing according to your specific test standards.

Q5: What warranty and after-sales support do you provide?

We offer a 3-year warranty and lifetime technical service. Free replacement spare parts are provided during the warranty period, alongside remote guidance, installation support, and operational training.
