Industrial Oven

Name: Industrial Oven
Brand: Xi'an LIB Environmental Simulation Industry

Reliable High-Temperature Solutions for Industrial Thermal Processing

LIB industry Industrial Ovens are engineered to deliver stable, uniform, and precise high-temperature performance for a wide range of industrial applications. With small, medium, and large chamber volumes and maximum temperatures up to +250°C, +500°C, +800°C, +1000°C,+1200 °C, these ovens support everything from routine drying to extreme heat treatment processes.

Available in both standard and fully customized designs, LIB industry offers a complete portfolio including High-Temperature Ovens, Ventilated Ovens, Vacuum Ovens, Tunnel Ovens, and Customized Industrial Ovens, ensuring the right solution for every testing and production requirement.

Model:O-100 | O-225 | O-500 | O-800 | O-1000

Standard:IEC 60216,MIL-810F

Features and Benefits of Industrial Oven

Wide Temperature Coverage with Optimized Structure

LIB industry Industrial Ovens support temperatures from ambient up to +1200 °C.
Different temperature ranges are engineered with specific internal structures, heating layouts, and insulation materials, ensuring:

Stable temperature performance
Reduced heat loss
Long service life under high-temperature conditions

High Temperature Uniformity & Process Reliability

LIB industry Industrial Ovens are engineered with optimized air circulation paths and precise heating element distribution, achieving excellent temperature uniformity across the entire workroom.

This ensures:

Consistent thermal exposure for all samples
Improved repeatability in testing and production processes
Reduced risk of local overheating or under-processing

Intelligent Programmable Control System

The industrial oven is equipped with a programmable color LCD touch-screen controller, enabling:

Precise temperature and time control
Automatic operation and program storage
Real-time monitoring and data recording
Ethernet communication for remote control and system integration

Industrial-Grade Safety Protection

Safety is a critical factor in high-temperature environments. LIB industry integrates multi-level protection systems to ensure safe daily operation:
Over-temperature protection
Over-current protection
Phase sequence protection
Earth leakage protection

Specifications of Industrial Oven

Model	O-100	O-225	O-500	O-800	O-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	750880850	8009501000	110011001300	110014501400	130014001400
Interior Volume	100L	225L	500L	800L	1000L
Temperature Range	A: Ambient ～+250 ℃ B: Ambient ～+400 ℃ C: Ambient ～+900 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Heating Rate	6 ℃ / min
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller, Ethernet connection
Safety Device	Over-temperature Protection; Over-current Protection; Phase Sequence Protection; Earth leakage Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam （Refractory brick）
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	2 shelves

Configuration of Industrial Oven

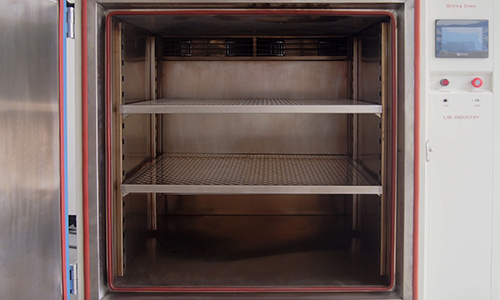

1. Workroom	High temperature resistance SUS304, can withstand high temperature environment and easy to clean. Its interior dimensions are designed for different industrial uses.
2. Air circulation system	Through special air duct design and heating system layout, the internal heat distribution is more uniform to ensure stable product quality.
3. Heating system	The electric heating wire converts electric energy into heat energy, heating speed is fast, and temperature control is more accurate.
4. Control system	To achieve accurate control of temperature, time, air circulation and other parameters.
