If you're sourcing environmental test equipment for photovoltaic (PV) module qualification, you've probably run into two very similar-sounding names: Solar Radiation Chamber and Xenon Test Chamber. Both simulate sunlight. Both show up in weathering and reliability test specs. And both get quoted by suppliers as if they're interchangeable.
They're not.
In this guide, we'll break down how a Solar Radiation Chamber differs from a Xenon Test Chamber, which standards each one is built for — including IEC 61215 UV Preconditioning and Damp Heat testing — and how to choose the right equipment for your lab, whether you're doing module certification or material-level R&D.
Xenon Test Chambers use a full-spectrum xenon arc lamp to closely replicate natural sunlight, making them ideal for material-level weathering research (backsheets, encapsulants, coatings) under standards like ASTM G155 and ISO 4892.
Solar Radiation Chambers — which combine a UV lamp source with precise temperature and humidity control — are purpose-built for PV module certification testing under IEC 61215, covering both the UV Preconditioning Test and Damp Heat Test in a single chamber.
If you need to certify a module, you need a Solar Radiation Chamber. If you're researching how a specific material degrades over 20+ years of field exposure, a Xenon Test Chamber is the better tool.
IEC 61215 is the internationally recognized design qualification standard for crystalline silicon PV modules. Two of its test sequences are directly relevant to chamber selection:
Total UV irradiation: 15 kWh/m² across the UVA + UVB range (280–400 nm)
UVB portion: at least 5 kWh/m² (≈33%) in the 280–320 nm range
Module temperature maintained at 60°C ± 5°C throughout exposure
Purpose: identify UV-sensitive materials (encapsulant, backsheet) before thermal cycling and humidity freeze tests are run
85°C / 85% RH, sustained for 1,000 hours
The longest and most demanding test in the IEC 61215 sequence
Purpose: evaluate moisture ingress, encapsulant degradation, and corrosion resistance
Neither of these tests calls for a full-spectrum xenon arc source. They call for controlled UV irradiance combined with precise temperature and humidity regulation — which is exactly what a Solar Radiation Chamber is built to deliver.
Feature | Solar Radiation Chamber | Xenon Test Chamber |
Light source | UV lamp (UVA + UVB targeted) | Xenon arc lamp (full spectrum: UV + visible + IR) |
Core function | UV exposure + temperature/humidity cycling | Full-spectrum solar simulation |
Primary standard | IEC 61215 (UV Preconditioning, Damp Heat) | ASTM G155, ISO 4892, SAE J2527 |
Typical use case | PV module design qualification & certification | Material-level weathering / accelerated aging R&D |
Test scope | Whole module: UV + Damp Heat in one chamber | Material coupons: color fade, chalking, strength loss |
Lamp maintenance cost | Lower (UV lamps are simpler and cheaper to replace) | Higher (xenon lamps + filters require frequent, costly replacement) |
| Best for | Labs running mandatory PV certification tests | Labs researching encapsulant/backsheet material durability |
 |
|
One detail that often gets missed during procurement: a properly designed Solar Radiation Chamber isn't just a UV box — it's built on a temperature-and-humidity chamber platform with a UV module added. That means the same chamber can typically run:
UV Preconditioning (UV lamp on, 60°C controlled temperature)
Damp Heat testing (UV lamp off, 85°C/85%RH cycling)
For labs on a budget, this eliminates the need to purchase a separate damp heat chamber — one machine covers two IEC 61215 test sequences instead of two.
Choosing a Solar Radiation Chamber isn't just about picking "a UV lamp plus a temp/humidity chamber."

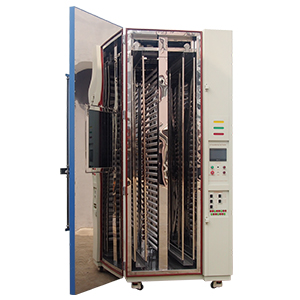

The lamp calibration, chamber uniformity, and material durability all directly affect whether your test data will hold up under IEC 61215 audit. LIB's Solar Radiation Chamber series is engineered around the exact requirements of that standard:
UVA + UVB targeted lamp array, spectrally calibrated to deliver the required 15 kWh/m² total UV dose with at least 33% (5 kWh/m²) falling in the UVB (280–320 nm) band
Real-time irradiance monitoring and feedback control, so output doesn't drift over long test cycles — critical for meeting the exact dose requirement rather than approximating it
Uniform irradiance distribution across the full specimen area, avoiding hot spots that can skew degradation results across different regions of the same module
±0.5°C temperature uniformity, holding modules at the 60°C ± 5°C required during UV Preconditioning
±2.5% RH humidity control, meeting the precision needed for 1,000-hour Damp Heat testing at 85°C/85%RH
Smooth ramp transitions between temperature phases to minimize overshoot and reduce thermal stress artifacts in test data
Corrosion-resistant SUS304 stainless steel interior, built to withstand prolonged high-humidity exposure without degrading test accuracy over repeated 1,000-hour cycles
Reinforced door seals and insulation designed for long-duration, unattended test runs
Full-size specimen holders with vertical mounting, sized to accommodate standard PV modules without irradiance shadowing between units, and configurable to test multiple modules per run
Switch between UV Preconditioning mode (UV lamp on, temperature-controlled) and Damp Heat mode (UV off, temp + humidity cycling) within the same chamber — no need to transfer modules between separate machines
Digital data logging for temperature, humidity, and irradiance throughout the test, generating traceable records for certification audits and OEM qualification reviews
3-year warranty and lifetime service
On-site installation, commissioning, and calibration
Technician training for lab staff running certification test sequences
Preventive maintenance and long-term calibration support to keep irradiance and climate control within spec year over year

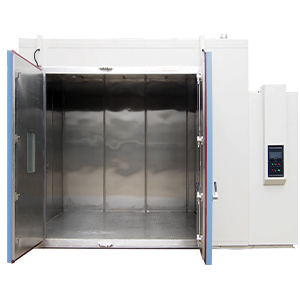

Walk-In Solar Radiation Chamber High-volume labs testing multiple full-size modules simultaneously |

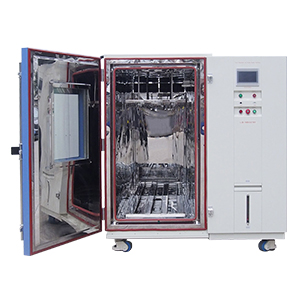

Labs that already have UV equipment and need a dedicated 85°C/85%RH chamber |

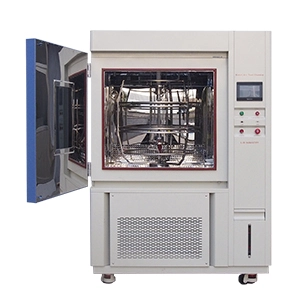

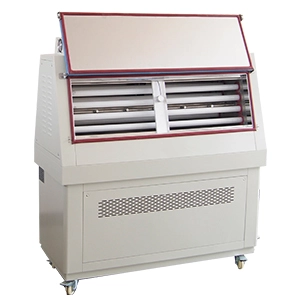

Standalone UV aging tests for coatings, plastics, and PV backsheet/encapsulant materials, without full temp/humidity cycling |  Full-spectrum weathering research for PV backsheets, encapsulants, and junction box materials, aligned with ASTM G155 / ISO 4892 |
 |  |

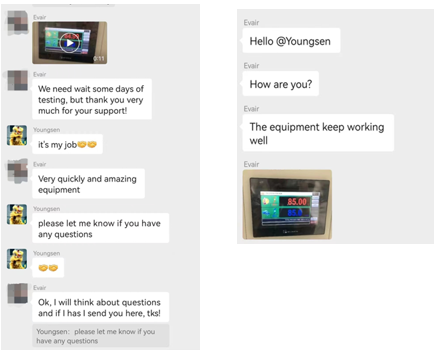

Customer: BYD
Challenge: Needed to run IEC 61215 UV Preconditioning and Damp Heat sequences for module certification without doubling up on chamber purchases.
Solution: Installed a LIB Solar Radiation Chamber configured for full-size module testing, with on-site technician training and calibration support.
Does IEC 61215 UV Preconditioning require a xenon lamp or a UV lamp?
IEC 61215 UV Preconditioning specifies UV irradiance in the UVA + UVB range with a minimum UVB proportion — this is delivered by UV lamps, not a full-spectrum xenon arc source.
Can one chamber perform both UV Preconditioning and Damp Heat testing?
Yes. A properly configured Solar Radiation Chamber combines a UV lamp system with temperature/humidity control, allowing both IEC 61215 test sequences to run in the same chamber.
What's the main difference between a Solar Radiation Chamber and a Xenon Test Chamber?
A Solar Radiation Chamber targets UV exposure plus temperature/humidity control for PV module certification (IEC 61215). A Xenon Test Chamber replicates the full solar spectrum for material-level weathering research (ASTM G155, ISO 4892).
How long does the IEC 61215 UV Preconditioning test take?
The module must receive a total of 15 kWh/m² of UV irradiation, with at least 5 kWh/m² in the UVB range, while held at 60°C ± 5°C. Actual duration depends on the chamber's irradiance output.
What warranty and after-sales support does LIB provide with its Solar Radiation Chambers?
LIB backs every Solar Radiation Chamber with a 3-year warranty and lifetime technical service, covering irradiance calibration, temperature/humidity system maintenance, and spare parts support — so your certification data stays reliable well beyond the initial purchase.
Can LIB provide a one-stop testing solution beyond just the Solar Radiation Chamber?Y
es. LIB offers a complete lineup of environmental test chambers — including Solar Radiation Chambers, Damp Heat Chambers, UV Test Chambers, and Xenon Test Chambers — plus one-stop service covering installation, on-site technician training, and ongoing calibration, so labs can source their entire PV certification test setup from a single supplier.
Choosing between a Solar Radiation Chamber and a Xenon Test Chamber comes down to one question: are you certifying a module, or researching a material? For IEC 61215 module qualification, a Solar Radiation Chamber gives you UV Preconditioning and Damp Heat testing in a single, cost-efficient platform.
Contact LIB today for a customized quote, technical spec sheet, or test solution tailored to your lab's certification requirements.
