Inaccurate salt spray testing doesn’t just produce unreliable data—it can lead to incorrect material selection, product failure, and costly recalls. Many laboratories and manufacturers face hidden risks in their corrosion testing processes, often unknowingly introducing errors that distort results. From improper sample preparation to inconsistent environmental conditions, these mistakes can significantly affect the evaluation of materials and products.
This guide highlights the most common salt spray testing mistakes and explains how to avoid them, ensuring precise, repeatable, and reliable corrosion testing results. With the right procedures and professional equipment, such as the advanced salt spray test machines from LIB industry, these challenges can be effectively managed.
 |  |
Salt spray testing may seem straightforward, but even small errors can lead to significant misinterpretations. Understanding common pitfalls is the first step toward accurate and reliable results.
Before testing, any oil, dust, or processing residues on the sample surface must be thoroughly removed. Contaminants can prevent the salt spray from contacting the material uniformly, leading to results that do not accurately reflect the sample’s corrosion resistance.
Solution: High-precision cleaning procedures using appropriate solvents and non-abrasive tools ensure every surface is contamination-free. LIB industry chambers, combined with standardized cleaning protocols, reduce human error in preparation, guaranteeing consistent test outcomes.
Samples that are too large may exceed the effective spray area, while irregular shapes—such as deep grooves or complex curves—can cause uneven corrosion.
Solution: Choose sample sizes that fit within the chamber’s effective range and, for complex shapes, divide the surfaces into testable sections. LIB industry chambers are designed with uniform spray distribution to reach complex geometries, minimizing variation in corrosion results.
Errors in weighing salt, improper mixing, or malfunctioning spray systems compromise test reliability.
Solution: LIB industry salt spray chambers feature automated solution preparation and precise monitoring systems that maintain exact concentrations, ensuring every test adheres to ASTM B117, ISO 9227, and JIS Z 2371 standards.
Excessive heat can cause water evaporation and salt crystallization, while low humidity can prevent adequate deposition of the salt spray.
Solution: Chambers with precision temperature and humidity control prevent these variations, maintaining consistent conditions throughout long-term tests.
Incorrect spray pressure, angle, or volume can unevenly expose the sample, distorting results.
Solution: Adjustable nozzles and automated spray systems from LIB industry ensure the spray reaches all areas evenly, simulating real-world corrosion environments accurately.
Too short a test may not fully expose the sample; too long may cause overcorrosion or flaking.
Solution: Determine test time based on material, environment, and standards. LIB industry chambers allow segmented testing for safe inspection intervals.
Samples near spray ports experience excessive attack; those in dead zones see reduced corrosion.
Solution: Use uniform distribution principles. LIB racks and holders minimize positional variance, ensuring equal exposure.
Frequent chamber openings introduce outside air and contaminants.
Solution: Automated monitoring reduces manual intervention. Controlled inspections maintain stable conditions.
Uniform, pitting, or crevice corrosion requires different rating criteria. Misidentification leads to incorrect conclusions.
Solution: Trained assessors familiar with ASTM G46 and ISO 10289 can accurately identify corrosion types. LIB industry provides guidance for proper evaluation.
Omitting or misrecording corrosion area, depth, or weight loss can distort outcomes.
Solution: Structured data recording and automated reporting in LIB chambers ensure accurate and reliable analysis.
Develop rigorous cleaning procedures tailored to material type.
Optimize sample selection for size, shape, and surface consistency.
Regularly calibrate and maintain equipment, including spray nozzles and sensors.
Adhere strictly to testing standards like ASTM B117, ISO 9227, and JIS Z 2371.
Minimize test interruptions and avoid sample collisions.
Record all data meticulously for accurate analysis.

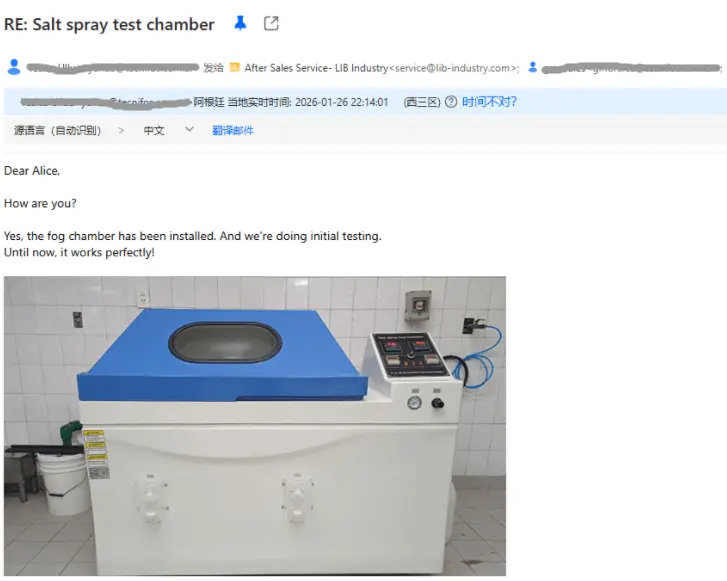

Using the LIB S-150 Salt Spray Cabinet , coated automotive parts were tested with consistent concentration control and uniform spray. Minor operational issues were resolved quickly, demonstrating both the reliability of the chamber and LIB’s responsive support.
Previously, uneven corrosion skewed test results. After implementing LIB salt spray chambers, testing became repeatable and accurate, enabling confident material selection and improved coating design.
 |  |
Avoid costly testing errors and ensure precise corrosion evaluations with professional salt spray test systems. LIB industry offers customizable chambers designed to maintain consistent environmental conditions, uniform spray distribution, and automated monitoring—fully compliant with ASTM B117, ISO 9227, and JIS Z 2371.
Take Action Today:
Request a Free Technical Consultation to determine the ideal chamber for your testing needs.
Access Global Support & 3-Year Warranty for peace of mind.
Receive a Quotation Within 24 Hours and improve your corrosion testing workflow immediately.
By combining precise equipment, standardized procedures, and professional support, LIB industry ensures accurate, repeatable, and reliable salt spray testing results every time.
