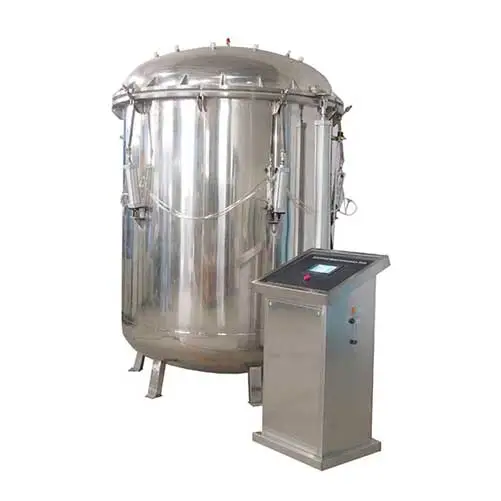

Water Immersion Test Chamber

Name: Water Immersion Test Chamber
Brand: Xi'an LIB Environmental Simulation Industry

LIB industry Water Immersion Test Chamber is used for the ingress protection tests involves immersing the equipment under test (EUT) according to IEC60529 standard IPX7 X8 rate. This water immersion tank is suitable for IPX7, X8, IP68 testing.

The water immersion chamber supports immersion tests at 1 meter depth for 30 minutes (IPX7), as well as greater depths and longer durations defined by the manufacturer (IPX8/IP68). Automatic water level control and overpressure protection ensure precise and safe operation during the tests, making it suitable for verifying waterproof performance of electronic products, automotive parts, connectors, and industrial devices.

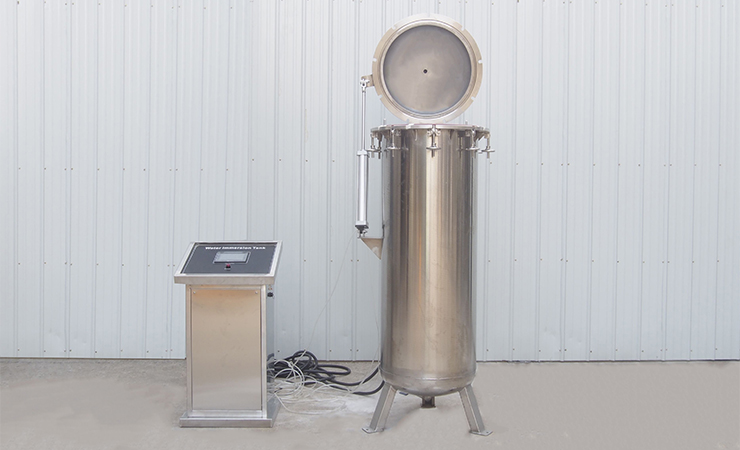

Model: R78-600

Standard:ISO 20653, IEC 60529, IPX7, IPX8

Features and Benefits of Water Immersion Test Chamber

1. IP X7 immersion testing is defined as immersion in up to one meter of water.

2. IP X8 immersion testing is defined as immersion in over one meter of water.

3. LIB's main rain chambers include dripping water test chamber, spraying water test chamber, water jets test chamber and high temperature and high pressure water test chamber.

Specifications of Water Immersion Test Chamber

Model	R78-600
Internal Dimension (mm)	Diameter 600mm * Height 1500 mm
Overall Dimension (mm)	Diameter 800mm * Height 1800 mm
Pressure	50m water depth pressure

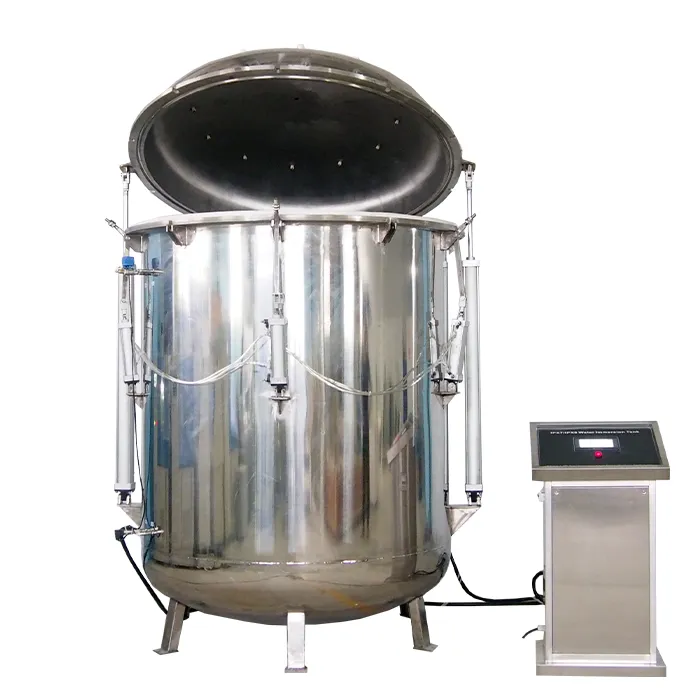

Open mode	Pneumatic lid
Material	A3 steel plate, wall thickness 15mm
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water Supply System	Storage water tank, Automatic water supply

Water Immersion Test Chamber Application

Water immersion test chamber is complying with IEC 60529 IPX7 and IPX8 grade simulating water depths of 1-50m with pressure up to 50bar.

Water immersion tank can be used in electronics, automotive and aerospace. In the automotive industry, such as automotive sensors, control modules and other components will also use this chamber because these components may face water contact conditions such as rain and car washing.

Water Immersion Test Chamber Working Principle

The water immersion test chamber simulates the water immersion conditions that the product may encounter in actual use.

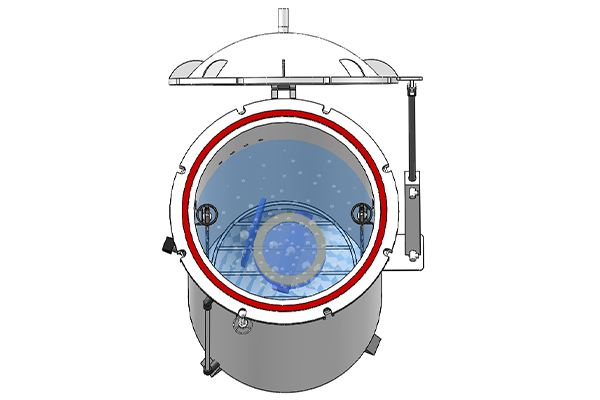

Firstly, place the specimen on the internal bracket, cover the lid, lock the screw, set the test pressure and time after starting the equipment and injecting water so that the product is soaked in water for some time, if there is a leak point of the unqualified specimen the air will be pressed into the its cavity to appear bubbles.

After the immersion test, the test piece is taken out for a thorough inspection and evaluation to determine whether it meets the requirements of the waterproof rating requirement.

How to Choose Proper Water Immersion Test Chamber?

Ensure that the internal size is sufficient to accommodate various test pieces. Mode R78-600 with 600L interior volume,meanwhile you can custom any size to fit special product.
Non-standard customization: In addition to standard water immersion test chamber, custom water immersion test chamber can also be provided according to special requirements such as the simulation of water pressure up to 100 meters deep.
Safety protection: water immersion tank with three M8 hole Z-shaped tripod at the bottom for good grip to fix tank safely. Independent pressure limiting device to effectively control the pressure in the cylindrical tank ensuring normal operation.

Reliable IPX7–IP68 Water Immersion Testing, Backed by Global Support

Accurate IPX7, IPX8, and IP68 compliance testing demands more than a compliant Water Immersion Test Chamber—it requires long-term reliability, operational safety, and dependable technical support. LIB industry delivers complete confidence throughout the entire testing lifecycle:

3-year system-level warranty
Permanent access to experienced technical engineers
Fast remote technical response within 1–3 hours
Worldwide spare parts availability
Professional English-speaking after-sales service team

From standard IPX7 immersion at 1 meter to customized IPX8/IP68 deep-water testing, LIB industry Water Immersion Test Chambers combine precise control with long-term service assurance.
